* Filter the F1 Thread through selecting the -XX options

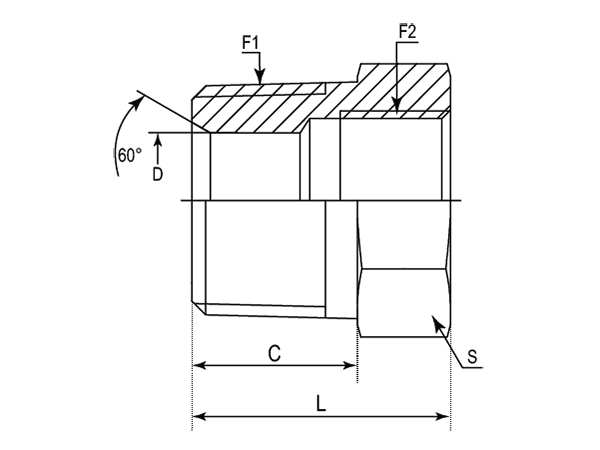

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | BSPT | BSPP | mm | mm | mm | mm |
| -01 | DABTM105FR-0202 | 1/8"-28 | 1/8"-28 | 5.00 | 4.50 | 10.00 | 12.00 |
| -04 | DABTM105FR-0402 | 1/4"-19 | 1/8"-28 | 14.00 | 7.00 | 21.00 | 14.00 |
| -04 | DABTM105FR-0408 | 1/4"-19 | 1/2"-14 | 14.00 | 7.00 | 40.50 | 27.00 |
| -06 | DABTM105FR-0602 | 3/8"-19 | 1/8"-28 | 15.00 | 8.57 | 22.00 | 17.00 |
| -06 | DABTM105FR-0604 | 3/8"-19 | 1/4"-19 | 15.00 | 11.45 | 23.00 | 19.00 |
| -08 | DABTM105FR-0802 | 1/2"-14 | 1/8"-28 | 19.00 | 13.00 | 27.00 | 22.00 |
| -08 | DABTM105FR-0804 | 1/2"-14 | 1/4"-19 | 19.00 | 11.45 | 27.00 | 22.00 |
| -08 | DABTM105FR-0806 | 1/2"-14 | 3/8"-19 | 19.00 | 14.95 | 27.00 | 22.00 |
| -08 | DABTM105FR-0816 | 1/2"-14 | 1"-11 | 19.00 | 13.00 | 55.50 | 41.00 |
| -12 | DABTM105FR-1204 | 3/4"-14 | 1/4"-19 | 20.00 | 11.45 | 29.00 | 27.00 |
| -12 | DABTM105FR-1206 | 3/4"-14 | 3/8"-19 | 20.00 | 14.95 | 29.00 | 27.00 |
| -12 | DABTM105FR-1208 | 3/4"-14 | 1/2"-14 | 20.00 | 18.63 | 29.00 | 27.00 |
| -16 | DABTM105FR-1608 | 1"-11 | 1/2"-14 | 24.00 | 24.00 | 34.00 | 36.00 |
| -16 | DABTM105FR-1612 | 1"-11 | 3/4"-14 | 24.00 | 24.12 | 34.00 | 36.00 |
| -16 | DABTM105FR-1616 | 1"-11 | 1"-11 | 24.00 | 22.20 | 59.00 | 41.00 |
| -20 | DABTM105FR-2008 | 1-1/4''-11 | 1/2"-14 | 25.00 | 31.00 | 37.00 | 46.00 |
| -20 | DABTM105FR-2016 | 1-1/4''-11 | 1"-11 | 25.00 | 30.29 | 37.00 | 46.00 |
| -24 | DABTM105FR-2412 | 1-1/2''-11 | 3/4"-14 | 25.00 | 38.00 | 37.00 | 50.00 |
| -24 | DABTM105FR-2416 | 1-1/2''-11 | 1"-11 | 25.00 | 38.00 | 37.00 | 50.00 |
| -24 | DABTM105FR-2420 | 1-1/2''-11 | 1-1/4''-11 | 25.00 | 38.95 | 37.00 | 50.00 |
| -32 | DABTM105FR-3216 | 2"-11 | 1"-11 | 30.00 | 49.00 | 45.00 | 65.00 |
| -32 | DABTM105FR-3220 | 2"-11 | 1-1/4''-11 | 30.00 | 49.00 | 45.00 | 65.00 |
| -32 | DABTM105FR-3224 | 2"-11 | 1-1/2''-11 | 30.00 | 44.85 | 45.00 | 65.00 |
| -40 | DABTM105FR-4020 | 2-1/2''-11 | 1-1/4''-11 | 36.00 | 38.95 | 60.00 | 76.20 |
| -40 | DABTM105FR-4032 | 2-1/2''-11 | 2"-11 | 36.00 | 56.80 | 60.00 | 76.20 |
| -48 | DABTM105FR-4832 | 3"-11 | 2"-11 | 40.00 | 56.80 | 60.00 | 90.00 |
