DABP1406Q 45° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • 1Connection TypeSwivel Female
  • 4Adaptor Structure45° Elbow
  • 06Thread TypesBSPP
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DABP1406Q
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 45° Elbow
  • Connection Type: Adjustable Swivel Female × Male
  • Thread Types: BSPP 60° × BSPP
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DABP1406Q
  • -04
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

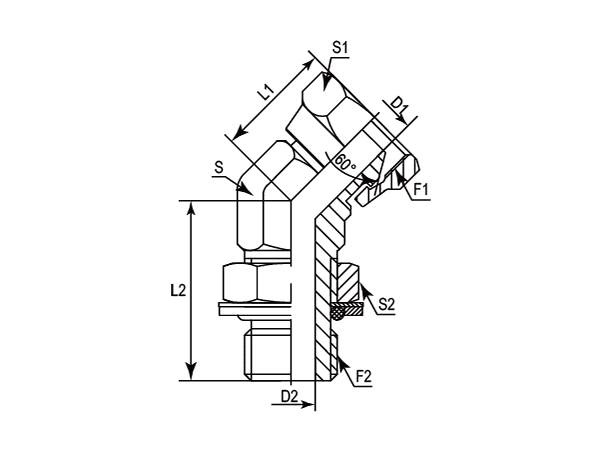

A drawing of DABP1406Q hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1 S2
- - BSPP BSPP mm mm mm mm mm mm mm
-01 DABP1406Q-0404 1/4"-19 1/4"-19 21.00 28.00 4.70 7.50 14.00 19.00 19.00
-06 DABP1406Q-0606 3/8"-19 3/8"-19 21.50 33.00 7.90 9.90 19.00 22.00 22.00
-08 DABP1406Q-0808 1/2"-14 1/2"-14 23.50 38.00 11.10 12.30 22.00 27.00 27.00
-12 DABP1406Q-1212 3/4"-14 3/4"-14 28.00 44.00 16.70 15.50 27.00 32.00 36.00
-16 DABP1406Q-1616 1"-11 1"-11 35.00 47.20 22.20 21.50 33.00 41.00 41.00
