DABPM4081 Adaptor – DME&JDE Group

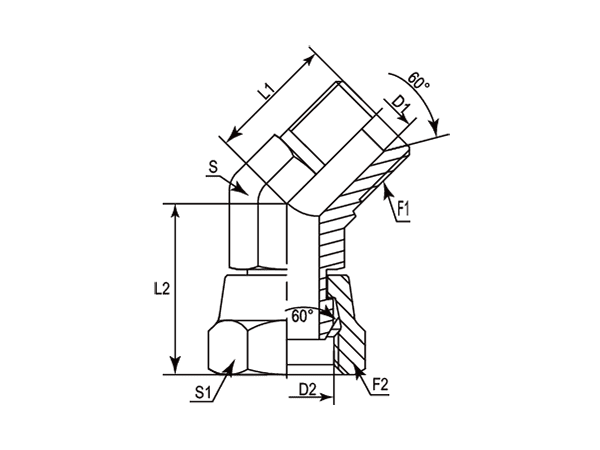

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1
-01	DABPM4081-0202	1/8"-28	1/8"-28	16.00	16.00	3.50	3.50	11.00	14.00
-04	DABPM4081-0404	1/4"-19	1/4"-19	21.00	23.00	4.70	4.70	14.00	19.00
-06	DABPM4081-0606	3/8"-19	3/8"-19	25.00	26.00	7.90	7.90	19.00	22.00
-08	DABPM4081-0808	1/2"-14	1/2"-14	28.00	26.50	11.10	11.10	22.00	27.00
-10	DABPM4081-1010	5/8"-14	5/8"-14	28.00	30.00	14.00	14.00	22.00	30.00
-12	DABPM4081-1212	3/4"-14	3/4"-14	32.00	35.00	16.70	16.70	27.00	32.00
-16	DABPM4081-1616	1"-11	1"-11	37.00	37.00	22.20	22.20	33.00	41.00
-20	DABPM4081-2020	1-1/4"-11	1-1/4"-11	40.00	40.00	28.60	28.60	41.00	50.00
-24	DABPM4081-2424	1-1/2"-11	1-1/2"-11	45.00	45.00	33.30	33.30	48.00	55.00
