DABPML52Q Run Adjustable Tee BSPP Male 60° - Metric Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • LAdaptor StructureRun Tee
  • 52Thread TypesMetric
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DABPML52Q
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: Run Tee
  • Connection Type: Adjustable Male × Male × Male
  • Thread Types: BSPP 60° × Metric × BSPP 60°
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DABPML52Q
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

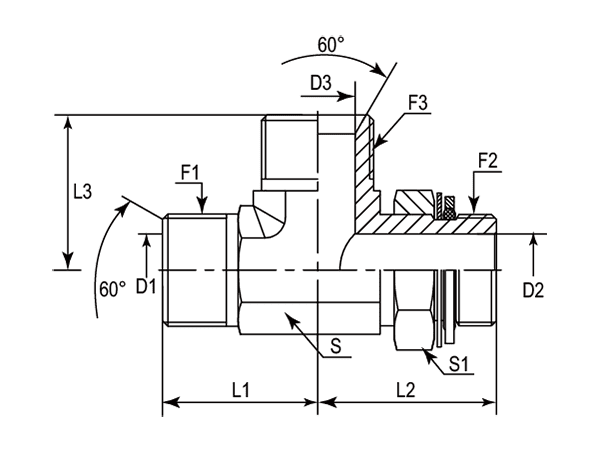

A drawing of DABPML52Q hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D1 D2 D3 S S1
- - BSPP METRIC BSPP mm mm mm mm mm mm mm mm
-01 DABPML52Q-0210 1/8"-28 M10X1 1/8"-28 22.00 27.00 22.00 3.50 4.50 3.50 11 14
-01 DABPML52Q-0212 1/8"-28 M12X1.5 1/8"-28 24.00 31.50 24.00 3.50 6.00 3.50 14 17
-04 DABPML52Q-0412 1/4"-19 M12X1.5 1/4"-19 27.00 31.50 27.00 4.70 6.00 4.70 14 17
-04 DABPML52Q-0414 1/4"-19 M14X1.5 1/4"-19 27.00 31.50 27.00 4.70 7.50 4.70 14 19
-04 DABPML52Q-0416 1/4"-19 M16X1.5 1/4"-19 28.00 37.00 28.00 4.70 9.00 4.70 19 22
-06 DABPML52Q-0614 3/8"-19 M14X1.5 3/8"-19 29.00 34.00 29.00 7.90 7.50 7.90 14 19
-06 DABPML52Q-0616 3/8"-19 M16X1.5 3/8"-19 29.00 37.00 29.00 7.90 9.00 7.90 19 22
-06 DABPML52Q-0618 3/8"-19 M18X1.5 3/8"-19 29.00 38.00 29.00 7.90 11.00 7.90 19 24
-08 DABPML52Q-0816 1/2"-14 M16X1.5 1/2"-14 34.00 40.00 34.00 11.10 7.00 11.10 22 22
-08 DABPML52Q-0818 1/2"-14 M18X1.5 1/2"-14 34.00 41.00 34.00 11.10 11.00 11.10 22 24
-08 DABPML52Q-0820 1/2"-14 M20X1.5 1/2"-14 34.00 43.00 34.00 11.10 12.50 11.10 22 27
-08 DABPML52Q-0822 1/2"-14 M22X1.5 1/2"-14 34.00 43.00 34.00 11.10 14.00 11.10 22 27
-10 DABPML52Q-1022 5/8"-14 M22X1.5 5/8"-14 37.00 46.00 37.00 14.30 14.00 14.30 22 27
-12 DABPML52Q-1222 3/4"-14 M22X1.5 3/4"-14 41.00 46.00 41.00 16.70 14.00 16.70 27 27
-12 DABPML52Q-1226 3/4"-14 M26X1.5 3/4"-14 41.00 50.00 41.00 16.70 17.00 16.70 27 32
-12 DABPML52Q-1227 3/4"-14 M27X2 3/4"-14 41.00 50.00 41.00 16.70 18.00 16.70 27 32
-16 DABPML52Q-1627 1"-11 M27X2 1"-11 46.00 52.00 46.00 22.20 18.00 22.20 33 32
-16 DABPML52Q-1633 1"-11 M33X2 1"-11 46.00 53.00 46.00 22.20 23.00 22.20 33 41
-20 DABPML52Q-2042 1-1/4"-11 M42X2 1-1/4"-11 51.00 58.00 51.00 28.60 30.00 28.60 41 50
-24 DABPML52Q-2448 1-1/2"-11 M48X2 1-1/2"-11 59.00 67.00 59.00 33.30 36.00 33.30 48 55
