DABPM4525 Adaptor – DME&JDE Group

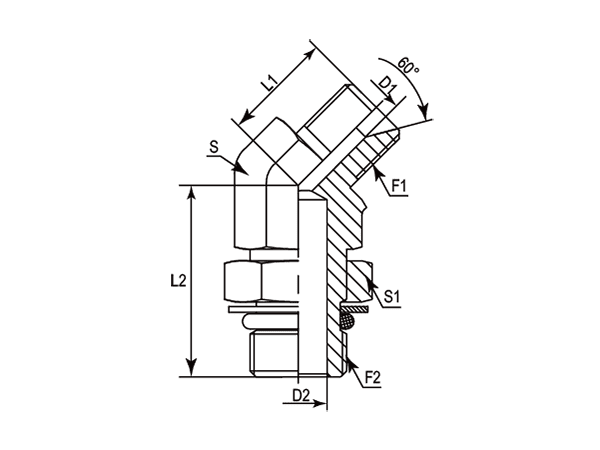

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1
-01	DABPM4525-0210	1/8"-28	M10X1	18.00	26.00	3.50	4.50	11.00	14.00
-01	DABPM4525-0212	1/8"-28	M12X1.5	21.00	28.00	3.50	6.00	14.00	17.00
-04	DABPM4525-0412	1/4"-19	M12X1.5	21.00	28.00	4.70	6.00	14.00	17.00
-04	DABPM4525-0414	1/4"-19	M14X1.5	21.00	28.00	4.70	7.50	14.00	19.00
-04	DABPM4525-0416	1/4"-19	M16X1.5	25.00	33.00	4.70	9.00	19.00	22.00
-06	DABPM4525-0614	3/8"-19	M14X1.5	25.00	30.00	7.90	7.50	14.00	19.00
-06	DABPM4525-0616	3/8"-19	M16X1.5	25.00	33.00	7.90	9.00	19.00	22.00
-06	DABPM4525-0618	3/8"-19	M18X1.5	25.00	33.00	7.90	11.00	19.00	24.00
-08	DABPM4525-0818	1/2"-14	M18X1.5	28.00	35.00	11.10	11.00	22.00	24.00
-08	DABPM4525-0820	1/2"-14	M20X1.5	28.00	38.00	11.10	12.50	22.00	27.00
-08	DABPM4525-0822	1/2"-14	M22X1.5	28.00	38.00	11.10	14.00	22.00	27.00
-10	DABPM4525-1022	5/8"-14	M22X1.5	28.00	38.00	14.30	14.00	22.00	27.00
-12	DABPM4525-1222	3/4"-14	M22X1.5	32.00	40.00	16.70	14.00	27.00	27.00
-12	DABPM4525-1226	3/4"-14	M26X1.5	32.00	44.00	16.70	17.00	27.00	32.00
-12	DABPM4525-1227	3/4"-14	M27X2	32.00	44.00	16.70	18.00	27.00	32.00
-16	DABPM4525-1627	1"-11	M27X2	37.00	47.00	22.20	18.00	33.00	32.00
-16	DABPM4525-1633	1"-11	M33X2	37.00	47.00	22.20	23.00	33.00	41.00
-20	DABPM4525-2042	1-1/4"-11	M42X2	40.00	49.00	28.60	30.00	41.00	50.00
-24	DABPM4525-2448	1-1/2"-11	M48X2	45.00	49.00	33.30	36.00	48.00	55.00
