DABPMX05M Adaptor – DME&JDE Group

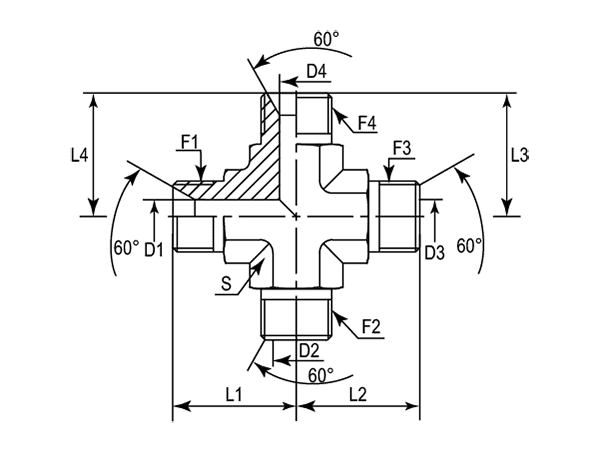

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	F4 (Thread)	L1	L2	L3	L4	D1	D2	D3	D4	S
-01	DABPMX05M-0404	1/4"-19	1/4"-19	1/4"-19	1/4"-19	26.00	26.00	26.00	26.00	4.70	4.70	4.70	4.70	14
-06	DABPMX05M-0606	3/8"-19	3/8"-19	3/8"-19	3/8"-19	30.00	30.00	30.00	30.00	7.90	7.90	7.90	7.90	19
-08	DABPMX05M-0808	1/2"-14	1/2"-14	1/2"-14	1/2"-14	35.00	35.00	35.00	35.00	11.10	11.10	11.10	11.10	22
-12	DABPMX05M-1212	3/4"-14	3/4"-14	3/4"-14	3/4"-14	42.00	42.00	42.00	42.00	16.70	16.70	16.70	16.70	27
-16	DABPMX05M-1616	1"-11	1"-11	1"-11	1"-11	50.00	50.00	50.00	50.00	22.00	22.00	22.00	22.00	33
