DABPM906Q Adaptor – DME&JDE Group

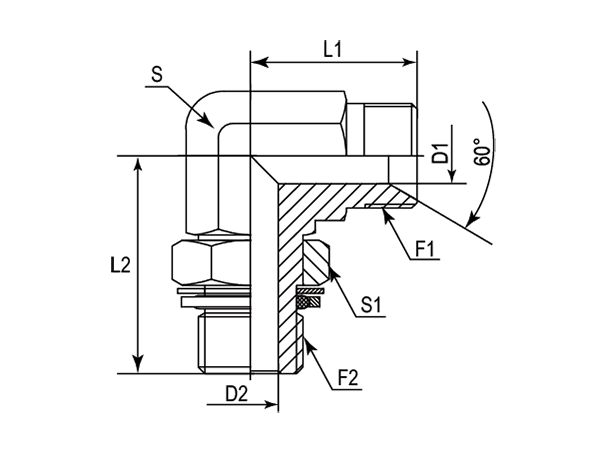

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1
-01	DABPM906Q-0202	1/8"-28	1/8"-28	22.5	26	3.5	4.4	11	14
-04	DABPM906Q-0402	1/4"-19	1/8"-28	27	28	4.7	4.4	14	14
-04	DABPM906Q-0404	1/4"-19	1/4"-19	27	31.5	4.7	7.5	14	19
-04	DABPM906Q-0406	1/4"-19	3/8"-19	28	37	4.7	9.9	19	22
-06	DABPM906Q-0604	3/8"-19	1/4"-19	29	34	7.9	7.5	19	19
-06	DABPM906Q-0606	3/8"-19	3/8"-19	29	37	7.9	9.9	19	22
-06	DABPM906Q-0608	3/8"-19	1/2"-14	32	43	7.9	12.3	22	27
-08	DABPM906Q-0806	1/2"-14	3/8"-19	34	40	11.1	9.9	22	22
-08	DABPM906Q-0808	1/2"-14	1/2"-14	34	43	11.1	12.3	22	27
-08	DABPM906Q-0812	1/2"-14	3/4"-14	37	50	11.1	15.5	27	36
-12	DABPM906Q-1208	3/4"-14	1/2"-14	41	45.5	16.7	12.3	27	27
-12	DABPM906Q-1212	3/4"-14	3/4"-14	41	50	16.7	15.5	27	36
-12	DABPM906Q-1216	3/4"-14	1"-11	43	53	16.7	21.5	33	41
-16	DABPM906Q-1612	1"-11	3/4"-14	46	52	22.2	15.5	33	36
-16	DABPM906Q-1616	1"-11	1"-11	46	53	22.2	21.5	33	41
-16	DABPM906Q-1616	1"-11	1"-11	46	53	22.2	21.5	33	41
-16	DABPM906Q-1620	1"-11	1-1/4"-11	50	58	22.2	27.5	41	50
-20	DABPM906Q-2020	1-1/4"-11	1-1/4"-11	51	58	28.6	27.5	41	50
-20	DABPM906Q-2020	1-1/4"-11	1-1/4"-11	51	58	28.6	27.5	41	50
-24	DABPM906Q-2424	1-1/2"-11	1-1/2"-11	60	61	33.3	33	48	55
-24	DABPM906Q-2424	1-1/2"-11	1-1/2"-11	59	67	33.3	33	48	55
-32	DABPM906Q-3232	2"-11	2"-11	75	75	46	45	63.5	70
