* Filter the F1 Thread through selecting the -XX options

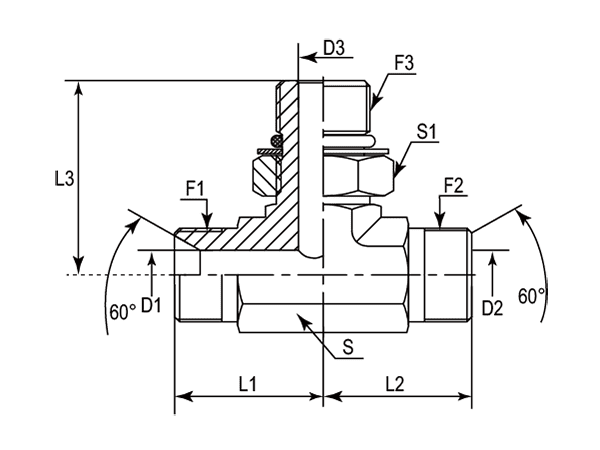

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | L1 | L2 | L3 | D1 | D2 | D3 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | METRCI | mm | mm | mm | mm | mm | mm | mm | mm |
| -01 | DABPMT525-0210 | 1/8"-28 | 1/8"-28 | M10X1 | 22.00 | 22.00 | 27.00 | 3.50 | 3.50 | 4.50 | 11 | 14 |
| -01 | DABPMT525-0212 | 1/8"-28 | 1/8"-28 | M12X1.5 | 24.00 | 24.00 | 31.50 | 3.50 | 3.50 | 6.00 | 14 | 17 |
| -04 | DABPMT525-0412 | 1/4"-19 | 1/4"-19 | M12X1.5 | 27.00 | 27.00 | 31.50 | 4.70 | 4.70 | 6.00 | 14 | 17 |
| -04 | DABPMT525-0414 | 1/4"-19 | 1/4"-19 | M14X1.5 | 27.00 | 27.00 | 31.50 | 4.70 | 4.70 | 7.50 | 14 | 19 |
| -04 | DABPMT525-0416 | 1/4"-19 | 1/4"-19 | M16X1.5 | 28.00 | 28.00 | 37.00 | 4.70 | 4.70 | 9.00 | 19 | 22 |
| -06 | DABPMT525-0614 | 3/8"-19 | 3/8"-19 | M14X1.5 | 29.00 | 29.00 | 34.00 | 7.90 | 7.90 | 7.50 | 14 | 19 |
| -06 | DABPMT525-0616 | 3/8"-19 | 3/8"-19 | M16X1.5 | 29.00 | 29.00 | 37.00 | 7.90 | 7.90 | 9.00 | 19 | 22 |
| -06 | DABPMT525-0618 | 3/8"-19 | 3/8"-19 | M18X1.5 | 29.00 | 29.00 | 38.00 | 7.90 | 7.90 | 11.00 | 19 | 24 |
| -08 | DABPMT525-0816 | 1/2"-14 | 1/2"-14 | M16X1.5 | 34.00 | 34.00 | 40.00 | 11.10 | 11.10 | 7.00 | 22 | 22 |
| -08 | DABPMT525-0818 | 1/2"-14 | 1/2"-14 | M18X1.5 | 34.00 | 34.00 | 41.00 | 11.10 | 11.10 | 11.00 | 22 | 24 |
| -08 | DABPMT525-0820 | 1/2"-14 | 1/2"-14 | M20X1.5 | 34.00 | 34.00 | 43.00 | 11.10 | 11.10 | 12.50 | 22 | 27 |
| -08 | DABPMT525-0822 | 1/2"-14 | 1/2"-14 | M22X1.5 | 34.00 | 34.00 | 43.00 | 11.10 | 11.10 | 14.00 | 22 | 27 |
| -10 | DABPMT525-1022 | 5/8"-14 | 5/8"-14 | M22X1.5 | 37.00 | 37.00 | 46.00 | 14.30 | 14.30 | 14.00 | 22 | 27 |
| -12 | DABPMT525-1222 | 3/4"-14 | 3/4"-14 | M22X1.5 | 41.00 | 41.00 | 46.00 | 16.70 | 16.70 | 14.00 | 27 | 27 |
| -12 | DABPMT525-1226 | 3/4"-14 | 3/4"-14 | M26X1.5 | 41.00 | 41.00 | 50.00 | 16.70 | 16.70 | 17.00 | 27 | 32 |
| -12 | DABPMT525-1227 | 3/4"-14 | 3/4"-14 | M27X2 | 41.00 | 41.00 | 50.00 | 16.70 | 16.70 | 18.00 | 27 | 32 |
| -16 | DABPMT525-1627 | 1"-11 | 1"-11 | M27X2 | 46.00 | 46.00 | 52.00 | 22.20 | 22.20 | 18.00 | 33 | 32 |
| -16 | DABPMT525-1633 | 1"-11 | 1"-11 | M33X2 | 46.00 | 46.00 | 53.00 | 22.20 | 22.20 | 23.00 | 33 | 41 |
| -20 | DABPMT525-2042 | 1-1/4"-11 | 1-1/4"-11 | M42X2 | 51.00 | 51.00 | 58.00 | 28.60 | 28.60 | 30.00 | 41 | 50 |
| -24 | DABPMT525-2448 | 1-1/2"-11 | 1-1/2"-11 | M48X2 | 59.00 | 59.00 | 67.00 | 33.30 | 33.30 | 36.00 | 48 | 55 |
