* Filter the F1 Thread through selecting the -XX options

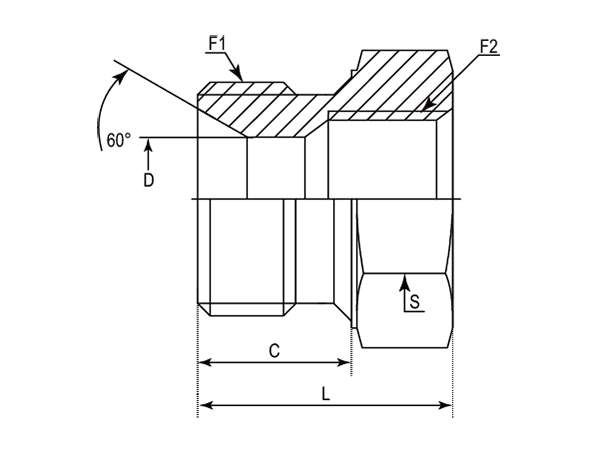

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm |
| -01 | DABPM105FR-0402 | 1/4"-19 | 1/8"-28 | 11.00 | 4.70 | 20.00 | 19.00 |
| -06 | DABPM105FR-0602 | 3/8"-19 | 1/8"-28 | 12.00 | 7.90 | 20.00 | 22.00 |
| -06 | DABPM105FR-0604 | 3/8"-19 | 1/4"-19 | 14.50 | 7.90 | 21.00 | 22.00 |
| -08 | DABPM105FR-0804 | 1/2"-14 | 1/4"-19 | 14.00 | 11.10 | 24.00 | 27.00 |
| -08 | DABPM105FR-0806 | 1/2"-14 | 3/8"-19 | 14.00 | 11.10 | 24.00 | 27.00 |
| -12 | DABPM105FR-1204 | 3/4"-14 | 1/4"-19 | 16.00 | 16.70 | 26.00 | 32.00 |
| -12 | DABPM105FR-1206 | 3/4"-14 | 3/8"-19 | 16.00 | 16.70 | 26.00 | 32.00 |
| -16 | DABPM105FR-1604 | 1"-11 | 1/4"-19 | 19.00 | 22.20 | 30.00 | 41.00 |
| -16 | DABPM105FR-1606 | 1"-11 | 3/8"-19 | 19.00 | 22.20 | 30.00 | 41.00 |
| -16 | DABPM105FR-1608 | 1"-11 | 1/2"-14 | 19.00 | 22.20 | 30.00 | 41.00 |
| -16 | DABPM105FR-1612 | 1"-11 | 3/4"-14 | 19.00 | 22.20 | 30.00 | 41.00 |
| -20 | DABPM105FR-2008 | 1-1/4"-11 | 1/2"-14 | 20.00 | 28.60 | 33.00 | 50.00 |
| -20 | DABPM105FR-2012 | 1-1/4"-11 | 3/4"-14 | 20.00 | 28.60 | 33.00 | 50.00 |
| -20 | DABPM105FR-2016 | 1-1/4"-11 | 1"-11 | 20.00 | 28.60 | 35.00 | 50.00 |
| -24 | DABPM105FR-2408 | 1-1/2"-11 | 1/2"-14 | 22.00 | 33.30 | 38.00 | 55.00 |
| -24 | DABPM105FR-2416 | 1-1/2"-11 | 1"-11 | 22.00 | 33.30 | 38.00 | 55.00 |
| -24 | DABPM105FR-2420 | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 33.30 | 38.00 | 55.00 |
