DABPMT181 Adaptor – DME&JDE Group

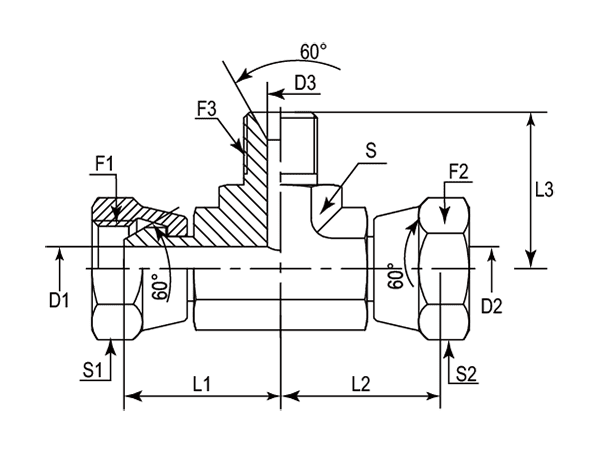

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	S	S1	S2
-01	DABPMT181-0202	1/8"-28	1/8"-28	1/8"-28	3.50	3.50	3.50	22.50	22.50	22.50	11	14	14
-04	DABPMT181-0404	1/4"-19	1/4"-19	1/4"-19	4.70	4.70	4.70	24.00	24.00	27.00	14	19	19
-06	DABPMT181-0606	3/8"-19	3/8"-19	3/8"-19	7.90	7.90	7.90	28.20	28.20	29.00	19	22	22
-08	DABPMT181-0808	1/2"-14	1/2"-14	1/2"-14	11.10	11.10	11.10	33.60	33.60	35.00	22	27	27
-10	DABPMT181-1010	5/8"-14	5/8"-14	5/8"-14	14.30	14.30	14.30	35.00	35.00	37.00	27	30	30
-12	DABPMT181-1212	3/4"-14	3/4"-14	3/4"-14	16.70	16.70	16.70	37.90	37.90	43.00	27	32	32
-16	DABPMT181-1616	1"-11	1"-11	1"-11	22.20	22.20	22.20	45.40	45.40	47.00	33	41	41
-20	DABPMT181-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	26.00	26.00	28.60	50.00	50.00	52.30	41	50	50
