DABPM907M Adaptor – DME&JDE Group

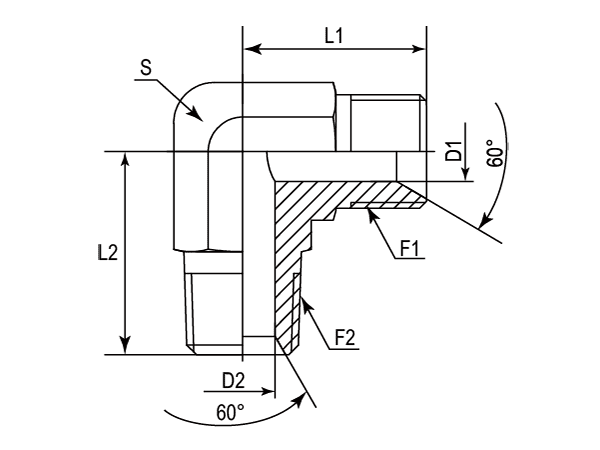

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S
-01	DABPM907M-0202	1/8"-28	1/8"-28	20.00	20.00	3.50	4.50	11.00
-04	DABPM907M-0402	1/4"-28	1/8"-28	27.00	23.50	4.70	4.50	14.00
-04	DABPM907M-0404	1/4"-19	1/4"-19	27.00	27.00	5.00	6.00	14.00
-06	DABPM907M-0606	3/8"-19	3/8"-19	29.00	31.00	7.90	9.00	19.00
-08	DABPM907M-0806	1/2"-14	3/8"-19	34.00	33.00	11.10	9.00	22.00
-08	DABPM907M-0808	1/2"-14	1/2"-14	34.00	37.50	11.10	12.00	22.00
-12	DABPM907M-1212	3/4"-14	3/4"-14	40.00	40.00	16.70	16.70	27.00
-16	DABPM907M-1616	1"-11	1"-11	45.00	45.00	22.20	22.20	33.00
-20	DABPM907M-2020	1-1/4"-11	1-1/4"-11	52.00	60.00	28.60	28.60	41.00
-24	DABPM907M-2424	1-1/2"-11	1-1/2"-11	60.50	67.10	33.30	33.30	48.00
-32	DABPM907M-3232	2"-11	2"-11	75.00	75.00	46.00	46.00	65.00
