DABPFT05F Adaptor – DME&JDE Group

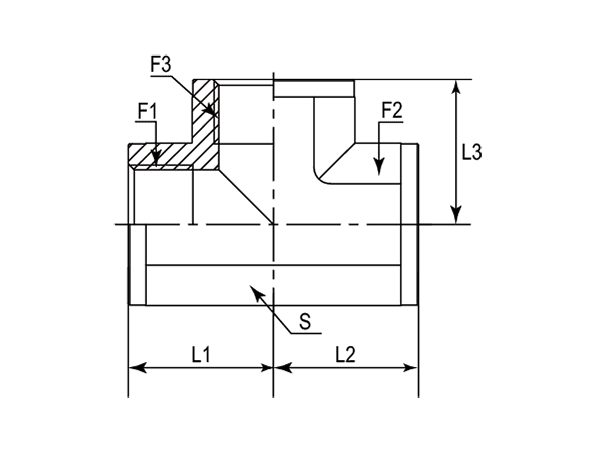

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	S
-01	DABPFT05F-0202	1/8"-28	1/8"-28	1/8"-28	20.00	20.00	20.00	14
-04	DABPFT05F-0404	1/4"-19	1/4"-19	1/4"-19	22.00	22.00	22.00	19
-06	DABPFT05F-0606	3/8"-19	3/8"-19	3/8"-19	26.00	26.00	26.00	22
-08	DABPFT05F-0808	1/2"-14	1/2"-14	1/2"-14	32.00	32.00	32.00	27
-10	DABPFT05F-1010	5/8"-14	5/8"-14	5/8"-14	35.00	35.00	35.00	33
-12	DABPFT05F-1212	3/4"-14	3/4"-14	3/4"-14	36.00	36.00	36.00	33
-16	DABPFT05F-1616	1"-11	1"-11	1"-11	42.00	42.00	42.00	41
-20	DABPFT05F-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	48.00	48.00	48.00	48
-24	DABPFT05F-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	53.00	53.00	53.00	65
-32	DABPFT05F-3232	2"-11	2"-11	2"-11	60.00	60.00	60.00	70
