DABP1T081 Adaptor – DME&JDE Group

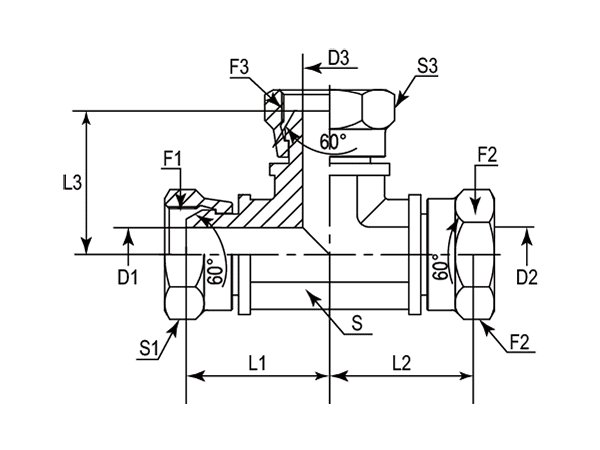

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1	S2	S3
-01	DABP1T081-0202	1/8"-28	1/8"-28	1/8"-28	22.50	22.50	22.50	3.50	3.50	3.50	11	14	14	14
-04	DABP1T081-0404	1/4"-19	1/4"-19	1/4"-19	24.50	24.50	24.50	4.70	4.70	4.70	14	19	19	19
-06	DABP1T081-0606	3/8"-19	3/8"-19	3/8"-19	27.50	27.50	27.50	7.90	7.90	7.90	19	22	22	22
-08	DABP1T081-0808	1/2"-14	1/2"-14	1/2"-14	31.50	31.50	31.50	11.10	11.10	11.10	22	27	27	27
-10	DABP1T081-1010	5/8"-14	5/8"-14	5/8"-14	35.00	35.00	35.00	14.30	14.30	14.30	22	30	30	30
-12	DABP1T081-1212	3/4"-14	3/4"-14	3/4"-14	41.50	41.50	41.50	16.70	16.70	16.70	27	32	32	32
-16	DABP1T081-1616	1"-11	1"-11	1"-11	46.00	46.00	46.00	22.20	22.20	22.20	33	41	41	41
-20	DABP1T081-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	51.20	51.20	51.20	28.60	28.60	28.60	41	50	50	50
-24	DABP1T081-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	63.50	63.50	63.50	33.30	33.30	33.30	48	55	55	55
-32	DABP1T081-3232	2"-11	2"-11	2"-11	65.00	65.00	65.00	45.00	45.00	45.00	63	70	70	70
