DABTF107F Adaptor – DME&JDE Group

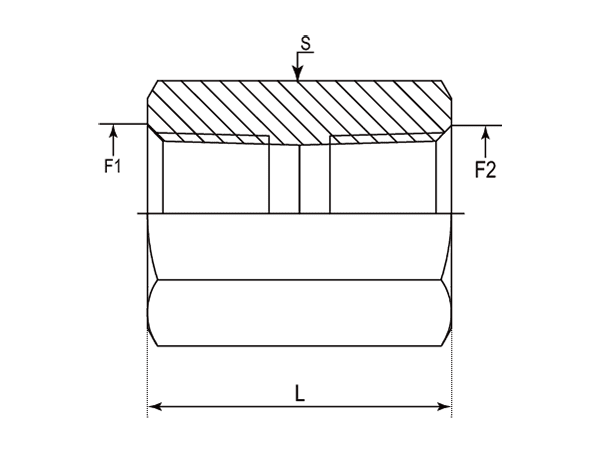

-	Part Number	F1 (Thread)	F2 (Thread)	L	S	Cross Number
-01	DABTF107F-0404	1/4"-19	1/4"-19	30.00	19.00	W-04-04
-06	DABTF107F-0602	3/8"-19	1/8"-28	26.00	22.00	W-06-02
-08	DABTF107F-0804	1/2"-14	1/4"-19	35.00	27.00	W-04-04
-08	DABTF107F-0806	1/2"-14	3/8"-19	40.00	27.00	W-08-06
-08	DABTF107F-0808	1/2"-14	1/2"-14	40.00	27.00	W-08-08
-16	DABTF107F-1612	1"-11	3/4"-14	50.00	41.00	W-16-12
-16	DABTF107F-1616	1"-11	1"-11	50.00	41.00	W-16-16
-20	DABTF107F-2016	1-1/4''-11	1"-11	53.00	50.00	W-20-16
-20	DABTF107F-2020	1-1/4"-11	1-1/4"-11	55.00	50.00	W-20-20
-24	DABTF107F-2424	1-1/2"-11	1-1/2"-11	55.00	55.00	W-24-24
-32	DABTF107F-3232	2"-11	2"-11	65.00	70.00	W-32-32
