DABPM1305 Adaptor – DME&JDE Group

Technical Data of DABPM1305

* Filter the F1 Thread through selecting the -XX options

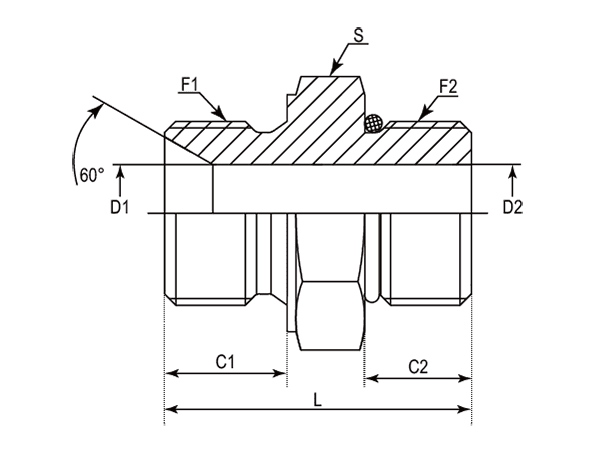

A drawing of DABPM1305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	BSPP	UNF	mm	mm	mm	mm	mm	mm
-01	DABPM1305-0404	1/4"-19	7/16"-20	11.00	9.14	4.37	4.37	29.50	19.00
-01	DABPM1305-0406	1/4"-19	9/16"-18	11.00	9.93	4.70	7.54	30.00	19.00
-01	DABPM1305-0408	1/4"-19	3/4"-16	11.00	11.13	4.70	9.93	32.00	22.00
-06	DABPM1305-0604	3/8"-19	7/16"-20	12.00	9.14	7.90	4.37	32.80	22.00
-06	DABPM1305-0606	3/8"-19	9/16"-18	12.00	9.93	7.50	7.54	33.50	22.00
-06	DABPM1305-0608	3/8"-19	3/4"-16	12.00	11.13	7.90	9.93	33.00	22.00
-06	DABPM1305-0610	3/8"-19	7/8"-14	12.00	12.70	7.90	12.29	36.50	27.00
-06	DABPM1305-0612	3/8"-19	1-1/16"-12	12.00	15.09	7.90	15.47	40.00	32.00
-08	DABPM1305-0808	1/2"-14	3/4"-16	14.00	11.13	11.10	9.93	40.00	27.00
-08	DABPM1305-0810	1/2"-14	7/8"-14	14.00	12.70	11.10	12.29	38.70	27.00
-08	DABPM1305-0812	1/2"-14	1-1/16"-12	14.00	15.09	11.10	15.47	42.00	32.00
-10	DABPM1305-1010	5/8"-14	7/8"-14	16.00	12.70	12.29	12.29	42.50	30.00
-10	DABPM1305-1012	5/8"-14	1-1/16"-12	16.00	15.09	14.00	15.47	43.50	32.00
-12	DABPM1305-1208	3/4"-14	3/4"-16	16.00	11.13	16.70	9.93	43.80	32.00
-12	DABPM1305-1210	3/4"-14	7/8"-14	16.00	12.70	16.70	12.29	43.50	32.00
-12	DABPM1305-1212	3/4"-14	1-1/16"-12	16.00	15.09	15.47	15.47	44.50	32.00
-12	DABPM1305-1216	3/4"-14	1-5/16"-12	16.00	15.09	16.70	21.44	46.00	41.00
-16	DABPM1305-1612	1"-11	1-1/16"-12	19.00	15.09	22.20	15.47	51.00	41.00
-16	DABPM1305-1616	1"-11	1-5/16"-12	19.00	15.09	21.44	21.44	46.10	41.00
-16	DABPM1305-1620	1"-11	1-5/8"-12	19.00	15.09	22.20	27.38	50.00	50.00
-20	DABPM1305-2016	1-1/4"-11	1-5/16"-12	20.00	15.09	28.60	21.44	53.50	50.00
-20	DABPM1305-2020	1-1/4"-11	1-5/8"-12	20.00	15.09	27.38	27.38	54.50	50.00
-20	DABPM1305-2024	1-1/4"-11	1-7/8"-12	20.00	15.09	28.60	33.30	52.00	53.97
