DABP14305 Adaptor – DME&JDE Group

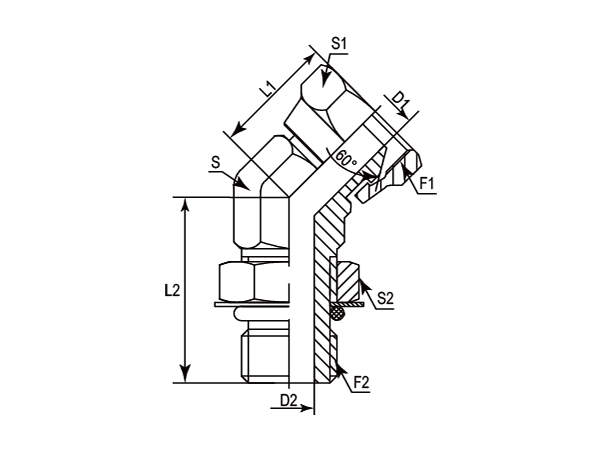

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	S2
-01	DABP14305-0204	1/8"-28	7/16"-20	25.00	26.70	3.50	4.37	11.00	14.00	14.00
-01	DABP14305-0205	1/8"-28	1/2"-20	25.00	26.70	3.50	5.94	14.00	14.00	17.00
-04	DABP14305-0405	1/4"-19	1/2"-20	25.00	29.00	4.50	5.94	14.00	19.00	17.00
-04	DABP14305-0406	1/4"-19	9/16"-18	25.00	29.00	4.50	7.54	14.00	19.00	19.00
-06	DABP14305-0606	3/8"-19	9/16"-18	30.00	30.00	7.10	7.54	19.00	22.00	19.00
-06	DABP14305-0608	3/8"-19	3/4"-16	30.00	33.00	7.10	9.93	19.00	22.00	2.00
-08	DABP14305-0808	1/2"-14	3/4"-16	33.00	35.00	11.10	9.93	22.00	27.00	22.00
-08	DABP14305-0810	1/2"-14	7/8"-14	33.00	38.60	11.10	12.29	22.00	27.00	27.00
-08	DABP14305-0812	1/2"-14	1-1/16"-12	39.00	43.90	11.10	15.47	27.00	27.00	32.00
-10	DABP14305-1010	5/8"-14	7/8"-14	38.00	38.60	12.00	12.29	22.00	30.00	27.00
-12	DABP14305-1210	3/4"-14	7/8"-14	41.00	40.50	15.50	12.29	27.00	32.00	27.00
-12	DABP14305-1212	3/4"-14	1-1/16"-12	41.00	43.90	15.50	15.47	27.00	32.00	32.00
-12	DABP14305-1216	3/4"-14	1-5/16"-12	44.00	47.20	15.50	21.44	33.00	32.00	38.00
-16	DABP14305-1616	1"-11	1-5/16"-12	46.00	47.20	22.20	21.44	33.00	41.00	38.00
-16	DABP14305-1620	1"-11	1-5/8"-12	46.00	48.50	22.20	27.38	41.00	41.00	48.00
-16	DABP14305-2020	1-1/4"-11	1-5/8"-12	48.00	48.50	28.60	27.38	41.00	50.00	48.00
-16	DABP14305-2024	1-1/4"-11	1-7/8"-12	52.00	48.50	28.60	33.32	48.00	50.00	55.00
-24	DABP14305-2424	1-1/2"-11	1-7/8"-12	55.00	48.50	33.30	33.32	48.00	55.00	55.00
