DABPM428M Adaptor – DME&JDE Group

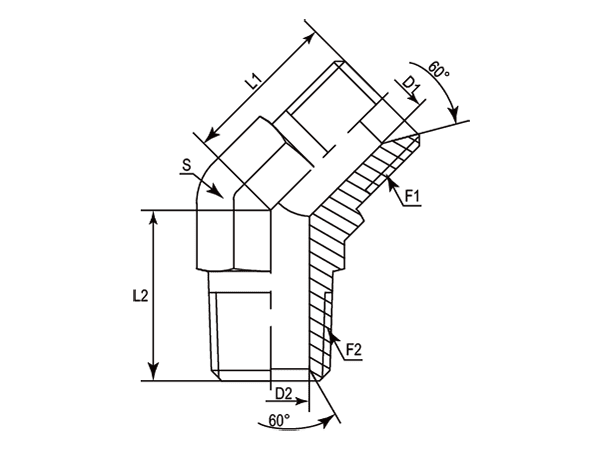

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S
-01	DABPM428M-0202	1/8"-28	1/8"-27	18.00	16.50	3.50	4.78	11.00
-04	DABPM428M-0404	1/4"-19	1/4"-18	21.00	22.00	4.70	7.14	14.00
-06	DABPM428M-0606	3/8"-19	3/8"-18	23.00	24.00	7.90	10.31	19.00
-08	DABPM428M-0808	1/2"-14	1/2"-14	26.00	29.50	11.10	13.49	22.00
-12	DABPM428M-1212	3/4"-14	3/4"-14	32.00	30.50	16.70	18.26	27.00
-16	DABPM428M-1616	1"-11	1"-11-1/2	37.00	38.00	22.20	23.83	33.00
-20	DABPM428M-2020	1-1/4"-11	1-1/4"-11-1/2	39.00	42.00	28.60	31.75	41.00
-24	DABPM428M-2424	1-1/2"-11	1-1/2"-11-1/2	45.00	45.00	33.30	38.10	48.00
-32	DABPM428M-3232	2"-11	2"-11-1/2	56.50	53.60	46.00	49.23	65.00
