DABPF906Q Adaptor – DME&JDE Group

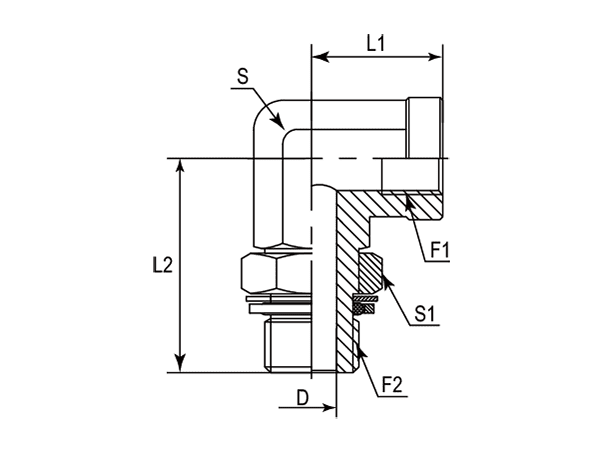

-	Part Number	F1 (Thread)	F2 (Thread)	D	L1	L2	S	S1
-01	DABPF906Q-0404	1/4"-19	1/4"-19	7.5	22	33.5	19	19
-06	DABPF906Q-0606	3/8"-19	3/8"-19	9.9	26	39.5	22	22
-08	DABPF906Q-0808	1/2"-14	1/2"-14	12.3	32	45.5	27	27
-12	DABPF906Q-1212	3/4"-14	3/4"-14	15.5	36	52	33	36
-16	DABPF906Q-1616	1"-11	1"-11	21.5	42	57	41	41
-20	DABPF906Q-2020	1-1/4''-11	1-1/4''-11	27.5	43	61	48	50
