DABTF907F Adaptor – DME&JDE Group

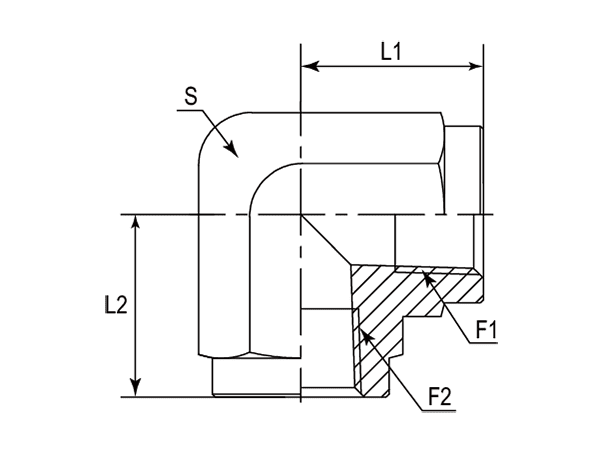

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	S	Cross Number
-01	DABTF907F-0202	1/8"-28	1/8"-28	16.80	16.80	14.28	CLP-02-02
-04	DABTF907F-0404	1/4"-19	1/4"-19	22.50	22.50	19.00	CLP-04-04
-06	DABTF907F-0606	3/8"-19	3/8"-19	26.00	26.00	22.00	CLP-06-06
-08	DABTF907F-0808	1/2"-14	1/2"-14	31.00	31.00	27.00	CLP-08-08
-12	DABTF907F-1212	3/4"-14	3/4"-14	34.50	34.50	33.00	CLP-12-12
-16	DABTF907F-1616	1"-11	1"-11	41.20	41.20	41.00	CLP-16-16
-20	DABTF907F-2020	1-1/4"-11	1-1/4"-11	43.20	43.20	48.00	CLP-20-20
-24	DABTF907F-2424	1-1/2"-11	1-1/2"-11	53.00	53.00	65.00	CLP-24-24
-32	DABTF907F-3232	2"-11	2"-11	62.00	62.00	71.00	CLP-32-32
