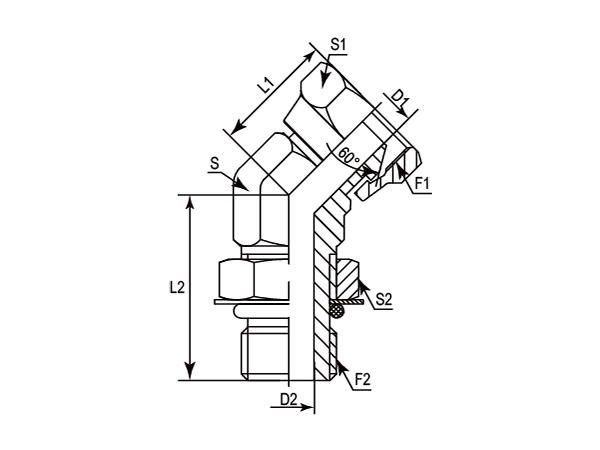

DABP14065 Adaptor – DME&JDE Group

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	S2
-01	DABP14065-0404	1/4"-19	1/4"-19	21.00	28.00	4.70	7.50	14.00	19.00	19.00
-06	DABP14065-0606	3/8"-19	3/8"-19	21.50	33.00	7.90	9.90	19.00	22.00	22.00
-08	DABP14065-0808	1/2"-14	1/2"-14	23.50	38.00	11.10	12.30	22.00	27.00	27.00
-12	DABP14065-1212	3/4"-14	3/4"-14	28.00	44.00	16.70	15.50	27.00	32.00	36.00
-16	DABP14065-1616	1"-11	1"-11	35.00	47.20	22.20	21.50	33.00	41.00	41.00
