DABPM100S Straight Adaptor BSPP Male 60° – Butt Welding

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 00Sealing TypeWelding
  • SWelding TypeButt
  • DME&JDE Code: DABPM100S
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: straight
  • Connection Type: Male
  • Thread Type: BSPP
  • Sealing Method Butt Welding
Technical Data of DABPM100S
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

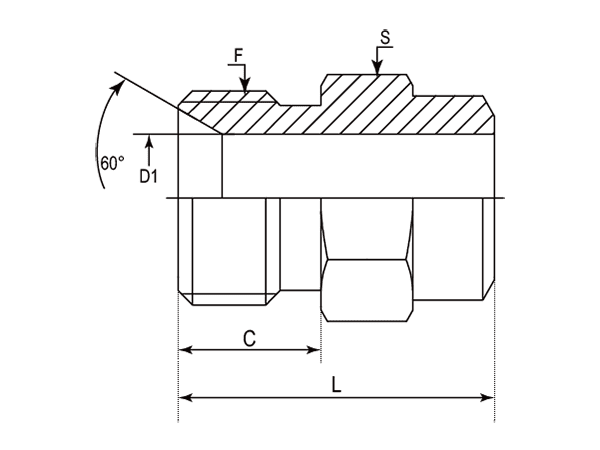

A drawing of DABPM100S hydraulic adaptor.
- Part Number F (Thread) C D L S
- - BSPP mm mm mm mm
-01 DABPM100S-0414 1/4"-19 11.00 6.00 22.00 17.00
-06 DABPM100S-0616 3/8"-19 12.00 9.50 26.00 17.00
-08 DABPM100S-0820 1/2"-14 14.00 12.50 31.00 22.00
-12 DABPM100S-1225 3/4"-14 16.00 16.70 37.00 27.00
-16 DABPM100S-1632 1"-11 19.00 21.50 42.00 34.00
-20 DABPM100S-2041 1-1/4"-11 20.00 27.50 46.00 42.00
-24 DABPM100S-2446 1-1/2"-11 22.00 33.30 53.00 50.00
