DABPMT081 Adaptor – DME&JDE Group

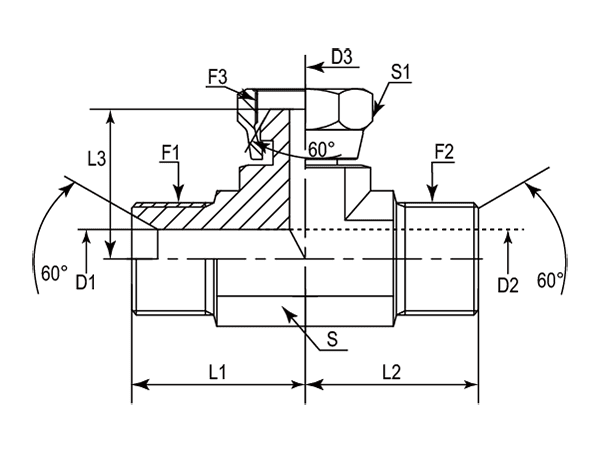

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1
-01	DABPMT081-0202	1/8"-28	1/8"-28	1/8"-28	22.50	22.50	22.50	3.50	3.50	3.50	11	14
-04	DABPMT081-0404	1/4"-19	1/4"-19	1/4"-19	27.00	27.00	23.81	4.70	4.70	4.70	14	19
-06	DABPMT081-0606	3/8"-19	3/8"-19	3/8"-19	29.00	29.00	28.20	7.90	7.90	7.90	19	22
-08	DABPMT081-0808	1/2"-14	1/2"-14	1/2"-14	35.00	35.00	33.60	11.10	11.10	11.10	22	27
-10	DABPMT081-1010	5/8"-14	5/8"-14	5/8"-14	37.00	37.00	35.50	14.30	14.30	12.00	27	30
-12	DABPMT081-1212	3/4"-14	3/4"-14	3/4"-14	43.00	43.00	37.90	16.70	16.70	16.70	27	32
-16	DABPMT081-1616	1"-11	1"-11	1"-11	47.00	47.00	45.42	22.20	22.20	22.20	33	41
-20	DABPMT081-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	50.00	50.00	50.00	28.60	28.60	28.60	41	50
-24	DABPMT081-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	60.50	60.50	54.80	33.30	33.30	33.30	48	55
-32	DABPMT081-3232	2"-11	2"-11	2"-11	75.00	75.00	60.00	46.00	46.00	46.00	65	70
