DABPML28M Adaptor – DME&JDE Group

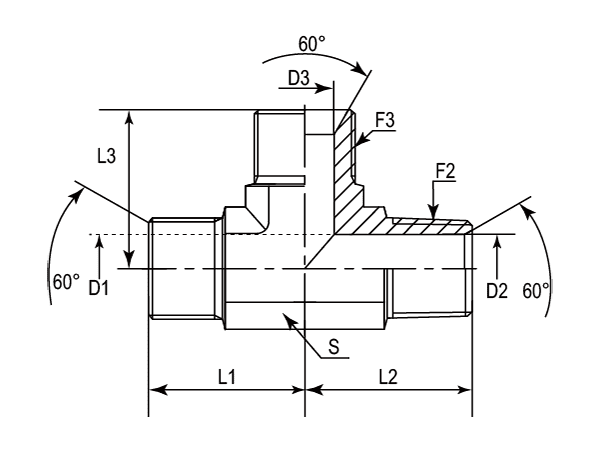

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S
-01	DABPML28M-0202	1/8"-28	1/8"-27	1/8"-28	18.50	18.50	18.50	3.50	4.78	3.50	11
-04	DABPML28M-0402	1/4"-28	1/8"-27	1/4"-28	27.00	23.00	27.00	4.70	4.78	4.70	14
-04	DABPML28M-0404	1/4"-19	1/4"-18	1/4"-19	27.00	27.70	27.00	4.70	7.14	4.70	14
-06	DABPML28M-0606	3/8"-19	3/8"-18	3/8"-19	29.00	31.00	29.00	7.90	10.31	7.90	19
-08	DABPML28M-0806	1/2"-14	3/8"-18	1/2"-14	34.00	33.00	34.00	11.10	10.31	11.10	22
-08	DABPML28M-0808	1/2"-14	1/2"-14	1/2"-14	34.00	37.50	34.00	11.10	13.49	11.10	22
-10	DABPML28M-1008	5/8"-14	1/2"-14	5/8"-14	38.00	40.00	38.00	14.30	13.49	14.30	27
-12	DABPML28M-1212	3/4"-14	3/4"-14	3/4"-14	40.00	40.40	40.00	16.70	18.26	16.70	27
-16	DABPML28M-1616	1"-11	1"-11-1/2	1"-11	45.00	50.00	45.00	22.20	23.83	22.20	33
-20	DABPML28M-2020	1-1/4"-11	1-1/4"-11-1/2	1-1/4"-11	52.00	60.50	52.00	28.60	31.75	28.60	41
-24	DABPML28M-2424	1-1/2"-11	1-1/2"-11-1/2	1-1/2"-11	59.00	67.10	59.00	33.30	38.10	33.30	48
-32	DABPML28M-3232	2"-11	2"-11-1/2	2"-11	75.00	76.20	75.00	46.00	49.23	46.00	65
