DABPF1305 Adaptor – DME&JDE Group

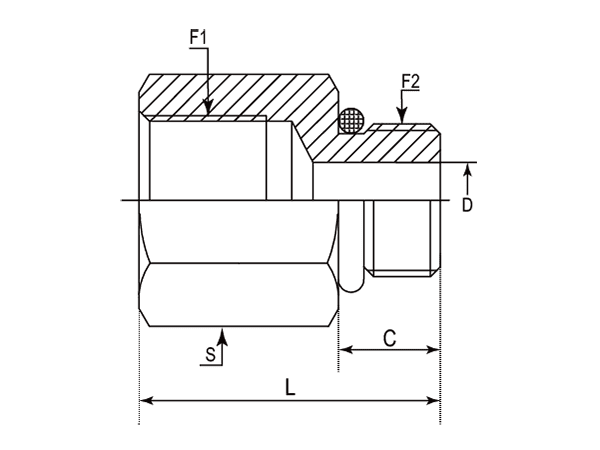

-	Part Number	F1 (Thread)	F2 (Thread)	D	L	S	S1
-01	DABPF1305-0404	1/4"-19	7/16"-20	9.14	4.37	29.5	19
-01	DABPF1305-0408	1/4"-19	3/4"-16	11.13	9.90	30.50	22.00
-06	DABPF1305-0606	3/8"-19	9/16"-18	9.93	7.50	31.50	22.00
-06	DABPF1305-0608	3/8"-19	3/4"-16	11.13	9.90	31.00	22.00
-08	DABPF1305-0810	1/2"-14	7/8"-14	12.70	12.30	37.00	27.00
-08	DABPF1305-0812	1/2"-14	1-1/16''-12	15.09	15.50	38.00	32.00
-12	DABPF1305-1212	3/4"-14	1-1/16''-12	15.09	15.50	41.00	32.00
