DABPMT07M Branch Tee Connector BSPP Male 60° - BSPT Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • TAdaptor StructureBranch Tee
  • 07Thread TypesBSPT
  • MConnection TypeMale
  • DME&JDE Code: DABPMT07M
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: Branch Tee
  • Connection Type: Male × Male × Male
  • Thread Types: BSPP 60° × BSPP 60° × BSPT 60°
Technical Data of DABPMT07M
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

* Filter the F1 Thread through selecting the -XX options

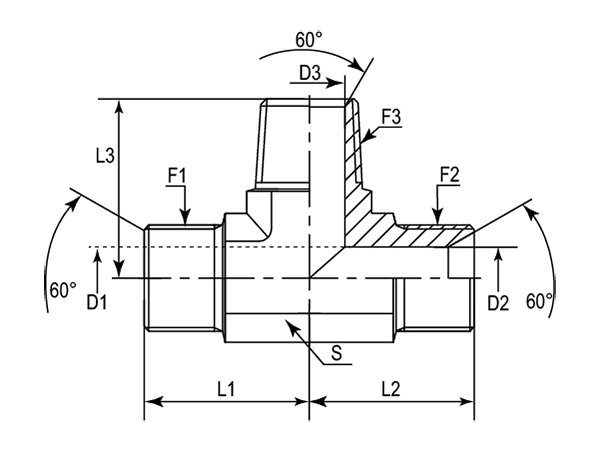

A drawing of DABPMT07M hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D1 D2 D3 S
- - BSPP BSPP BSPT mm mm mm mm mm mm mm
-01 DABPMT07M-0202 1/8"-28 1/8"-28 1/8"-28 18.50 18.50 18.50 3.50 3.50 4.50 11
-04 DABPMT07M-0402 1/4"-28 1/4"-28 1/8"-28 27.00 27.00 23.00 4.70 4.70 4.50 14
-04 DABPMT07M-0404 1/4"-19 1/4"-19 1/4"-19 27.00 27.00 27.00 4.70 4.70 6.00 14
-06 DABPMT07M-0606 3/8"-19 3/8"-19 3/8"-19 29.00 29.00 31.00 7.90 7.90 9.00 19
-08 DABPMT07M-0806 1/2"-14 1/2"-14 3/8"-19 34.00 34.00 33.00 11.10 11.10 9.00 22
-08 DABPMT07M-0808 1/2"-14 1/2"-14 1/2"-14 34.00 34.00 37.50 11.10 11.10 12.00 22
-10 DABPMT07M-1008 5/8"-14 5/8"-14 1/2"-14 38.00 38.00 40.00 14.30 14.30 12.00 27
-12 DABPMT07M-1212 3/4"-14 3/4"-14 3/4"-14 40.00 40.00 40.00 16.70 16.70 16.70 27
-16 DABPMT07M-1616 1"-11 1"-11 1"-11 45.00 45.00 50.00 22.20 22.20 22.20 33
-20 DABPMT07M-2020 1-1/4"-11 1-1/4"-11 1-1/4"-11 52.00 52.00 56.00 28.60 28.60 28.60 41
-24 DABPMT07M-2424 1-1/2"-11 1-1/2"-11 1-1/2"-11 59.00 59.00 67.00 33.30 33.30 33.30 48
-32 DABPMT07M-3232 2"-11 2"-11 2"-11 75.00 75.00 75.00 46.00 46.00 45.00 65
