DABPML065 Adaptor – DME&JDE Group

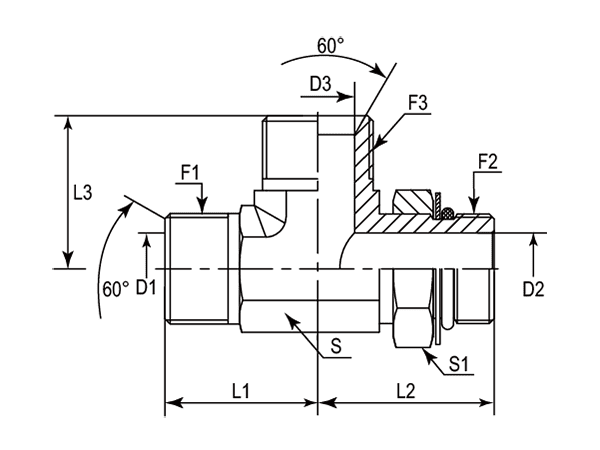

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1
-01	DABPML065-0202	1/8"-28	1/8"-28	1/8"-28	22.00	26.00	22.00	3.50	4.40	3.50	11	14
-01	DABPML065-0204	1/8"-28	1/4"-19	1/8"-28	24.00	31.50	24.00	3.50	7.50	3.50	14	19
-04	DABPML065-0402	1/4"-19	1/8"-28	1/4"-19	27.00	28.00	27.00	4.70	4.40	4.70	14	14
-04	DABPML065-0404	1/4"-19	1/4"-19	1/4"-19	27.00	31.50	27.00	4.70	7.50	4.70	14	19
-04	DABPML065-0406	1/4"-19	3/8"-19	1/4"-19	27.00	37.00	27.00	4.70	9.90	4.70	19	22
-06	DABPML065-0604	3/8"-19	1/4"-19	3/8"-19	29.00	35.00	29.00	7.90	7.50	7.90	19	19
-06	DABPML065-0606	3/8"-19	3/8"-19	3/8"-19	29.00	37.00	29.00	7.90	9.90	7.90	19	22
-06	DABPML065-0608	3/8"-19	1/2"-14	3/8"-19	32.00	43.00	32.00	7.90	12.30	7.90	22	27
-08	DABPML065-0806	1/2"-14	3/8"-19	1/2"-14	34.00	40.00	34.00	11.10	9.90	11.10	22	22
-08	DABTML06Q-0808	1/2"-14	1/2"-14	1/2"-14	37.50	43.00	37.50	12.00	12.30	12.00	22	27
-12	DABTML06Q-1212	3/4"-14	3/4"-14	3/4"-14	40.40	49.00	40.40	16.70	15.50	16.70	27	36
-16	DABTML06Q-1616	1"-11	1"-11	1"-11	50.00	52.00	50.00	22.20	21.50	22.20	33	41
