DABTFL07M Adaptor – DME&JDE Group

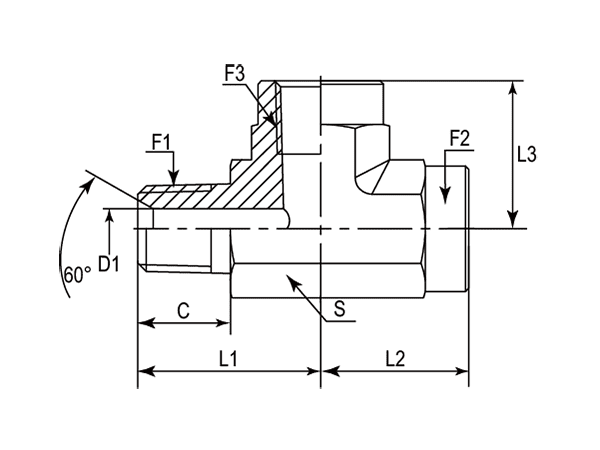

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	C	D	L1	L2	L3	S
-01	DABTFL07M-0202	1/8"-28	1/8"-28	1/8"-28	10.00	4.50	16.80	16.80	19.80	14
-04	DABTFL07M-0404	1/4"-19	1/4"-19	1/4"-19	14.00	6.00	27.70	22.40	27.70	19
-06	DABTFL07M-0606	3/8"-19	3/8"-19	3/8"-19	15.00	9.00	26.00	26.00	31.00	22
-08	DABTFL07M-0808	1/2"-14	1/2"-14	1/2"-14	19.00	12.00	31.20	31.20	37.40	27
-12	DABTFL07M-1212	3/4"-14	3/4"-14	3/4"-14	20.00	16.70	34.50	34.50	40.40	33
-16	DABTFL07M-1616	1"-11	1"-11	1"-11	24.00	22.20	41.20	41.20	50.00	41
-20	DABTFL07M-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	25.00	28.60	43.20	43.20	60.50	48
