* Filter the F1 Thread through selecting the -XX options

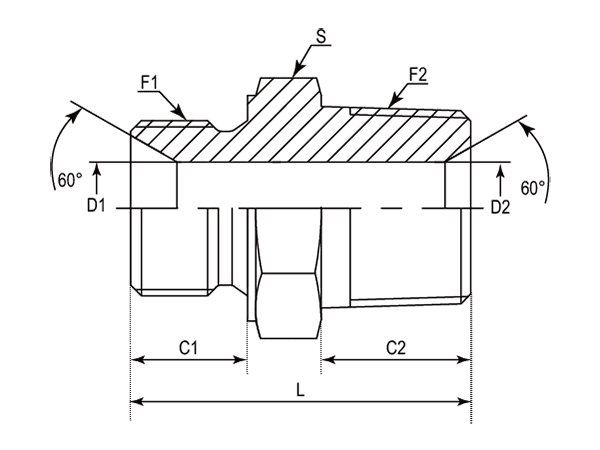

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPT | mm | mm | mm | mm | mm | mm |
| -01 | DABPM107M-LH-0202 | 1/8"-28 | 1/8"-28 | 9.00 | 10.00 | 3.50 | 3.50 | 26.50 | 14.00 |
| -01 | DABPM107M-LH-0204 | 1/8"-28 | 1/4"-19 | 9.00 | 14.00 | 3.50 | 6.00 | 30.50 | 14.00 |
| -04 | DABPM107M-LH-0402 | 1/4"-19 | 1/8"-28 | 11.00 | 10.00 | 4.50 | 4.50 | 29.50 | 19.00 |
| -04 | DABPM107M-LH-0404 | 1/4"-19 | 1/4"-19 | 11.00 | 14.00 | 4.70 | 6.00 | 32.50 | 19.00 |
| -04 | DABPM107M-LH-0406 | 1/4"-19 | 3/8"-19 | 11.00 | 15.00 | 4.70 | 9.00 | 33.50 | 19.00 |
| -04 | DABPM107M-LH-0408 | 1/4"-19 | 1/2"-14 | 11.00 | 19.00 | 4.70 | 12.00 | 39.00 | 22.00 |
| -04 | DABPM107M-LH-0412 | 1/4"-19 | 3/4"-14 | 11.00 | 20.00 | 4.70 | 16.70 | 40.00 | 27.00 |
| -06 | DABPM107M-LH-0602 | 3/8"-19 | 1/8"-28 | 12.00 | 10.00 | 7.90 | 4.50 | 30.00 | 22.00 |
| -06 | DABPM107M-LH-0604 | 3/8"-19 | 1/4"-19 | 12.00 | 14.00 | 7.90 | 6.00 | 35.00 | 22.00 |
| -06 | DABPM107M-LH-0606 | 3/8"-19 | 3/8"-19 | 12.00 | 15.00 | 7.90 | 7.90 | 36.00 | 22.00 |
| -06 | DABPM107M-LH-0608 | 3/8"-19 | 1/2"-14 | 12.00 | 19.00 | 7.90 | 12.00 | 39.00 | 22.00 |
| -06 | DABPM107M-LH-0612 | 3/8"-19 | 3/4"-14 | 12.00 | 20.00 | 7.90 | 16.70 | 41.00 | 27.00 |
| -08 | DABPM107M-LH-0804 | 1/2"-14 | 1/4"-19 | 14.00 | 14.00 | 11.10 | 6.00 | 39.00 | 27.00 |
| -08 | DABPM107M-LH-0806 | 1/2"-14 | 3/8"-19 | 14.00 | 15.00 | 11.10 | 9.00 | 40.00 | 27.00 |
| -08 | DABPM107M-LH-0808 | 1/2"-14 | 1/2"-14 | 14.00 | 19.00 | 11.10 | 11.10 | 44.00 | 27.00 |
| -08 | DABPM107M-LH-0810 | 1/2"-14 | 5/8"-14 | 14.00 | 19.00 | 11.10 | 14.00 | 44.00 | 27.00 |
| -08 | DABPM107M-LH-0812 | 1/2"-14 | 3/4"-14 | 14.00 | 20.00 | 11.10 | 16.70 | 45.00 | 30.00 |
| -08 | DABPM107M-LH-0816 | 1/2"-14 | 1"-11 | 14.00 | 24.00 | 11.10 | 22.20 | 50.50 | 36.00 |
| -10 | DABPM107M-LH-1006 | 5/8"-14 | 3/8"-19 | 16.00 | 15.00 | 14.00 | 9.00 | 42.00 | 30.00 |
| -10 | DABPM107M-LH-1008 | 5/8"-14 | 1/2"-14 | 16.00 | 19.00 | 14.00 | 12.00 | 46.00 | 30.00 |
| -10 | DABPM107M-LH-1010 | 5/8"-14 | 5/8"-14 | 16.00 | 19.00 | 14.00 | 14.00 | 47.00 | 30.00 |
| -10 | DABPM107M-LH-1012 | 5/8"-14 | 3/4"-14 | 16.00 | 20.00 | 14.00 | 16.70 | 48.00 | 30.00 |
| -12 | DABPM107M-LH-1208 | 3/4"-14 | 1/2"-14 | 16.00 | 19.00 | 16.70 | 12.00 | 47.00 | 32.00 |
| -12 | DABPM107M-LH-1212 | 3/4"-14 | 3/4"-14 | 16.00 | 20.00 | 16.70 | 16.70 | 45.00 | 32.00 |
| -12 | DABPM107M-LH-1216 | 3/4"-14 | 1"-11 | 16.00 | 24.00 | 16.70 | 22.20 | 53.00 | 36.00 |
| -12 | DABPM107M-LH-1220 | 3/4"-14 | 1-1/4"-11 | 16.00 | 25.00 | 16.70 | 28.60 | 56.00 | 46.00 |
| -16 | DABPM107M-LH-1608 | 1"-11 | 1/2"-14 | 19.00 | 19.00 | 22.20 | 12.00 | 52.00 | 41.00 |
| -16 | DABPM107M-LH-1612 | 1"-11 | 3/4"-14 | 19.00 | 20.00 | 22.20 | 16.70 | 53.00 | 41.00 |
| -16 | DABPM107M-LH-1616 | 1"-11 | 1"-11 | 19.00 | 24.00 | 22.20 | 22.20 | 57.00 | 41.00 |
| -16 | DABPM107M-LH-1620 | 1"-11 | 1-1/4"-11 | 19.00 | 25.00 | 22.20 | 28.60 | 58.00 | 46.00 |
| -16 | DABPM107M-LH-1624 | 1"-11 | 1-1/2"-11 | 19.00 | 25.00 | 22.20 | 33.30 | 61.00 | 50.00 |
| -20 | DABPM107M-LH-2012 | 1-1/4"-11 | 3/4"-11 | 20.00 | 20.00 | 28.60 | 16.70 | 56.00 | 50.00 |
| -20 | DABPM107M-LH-2016 | 1-1/4"-11 | 1"-11 | 20.00 | 24.00 | 28.60 | 22.20 | 60.00 | 50.00 |
| -20 | DABPM107M-LH-2020 | 1-1/4"-11 | 1-1/4"-11 | 20.00 | 25.00 | 28.60 | 28.60 | 61.00 | 50.00 |
| -20 | DABPM107M-LH-2024 | 1-1/4"-11 | 1-1/2"-11 | 20.00 | 25.00 | 28.60 | 33.30 | 62.00 | 50.00 |
| -24 | DABPM107M-LH-2416 | 1-1/2"-11 | 1"-11 | 22.00 | 24.00 | 33.30 | 22.20 | 62.00 | 55.00 |
| -24 | DABPM107M-LH-2420 | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 25.00 | 33.30 | 28.60 | 63.00 | 55.00 |
| -24 | DABPM107M-LH-2424 | 1-1/2"-11 | 1-1/2"-11 | 22.00 | 25.00 | 33.30 | 33.30 | 63.00 | 55.00 |
| -24 | DABPM107M-LH-2432 | 1-1/2"-11 | 2"-11 | 22.00 | 30.00 | 33.30 | 46.00 | 70.00 | 65.00 |
| -32 | DABPM107M-LH-3220 | 2"-11 | 1-1/4"-11 | 25.00 | 25.00 | 46.00 | 28.60 | 70.00 | 70.00 |
| -32 | DABPM107M-LH-3224 | 2"-11 | 1-1/2"-11 | 25.00 | 25.00 | 46.00 | 33.30 | 68.50 | 70.00 |
| -32 | DABPM107M-LH-3232 | 2"-11 | 2"-11 | 25.00 | 30.00 | 46.00 | 46.00 | 72.00 | 70.00 |
| -40 | DABPM107M-LH-4040 | 2-1/2"-11 | 2-1/2"-11 | 32.00 | 36.00 | 58.00 | 58.00 | 84.00 | 90.00 |
