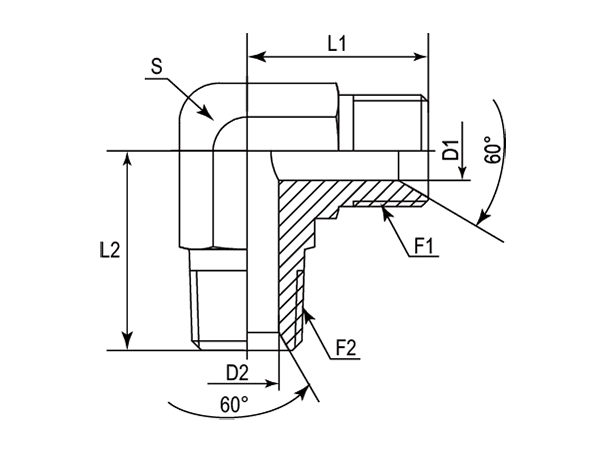

DABPM928M Adaptor – DME&JDE Group

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S
-01	DABPM928M-0202	1/8"-28	1/8"-27	20.00	20.00	3.50	4.78	11.00
-04	DABPM928M-0402	1/4"-19	1/8"-27	27.00	22.40	4.70	4.78	14.00
-04	DABPM928M-0404	1/4"-19	1/4"-18	27.00	27.70	5.00	7.14	14.28
-06	DABPM928M-0606	3/8"-19	3/8"-18	29.00	31.00	7.90	10.31	19.00
-08	DABPM928M-0806	1/2"-14	3/8"-18	34.00	32.50	11.10	10.31	22.00
-08	DABPM928M-0808	1/2"-14	1/2"-14	34.00	37.50	11.10	13.49	22.00
-12	DABPM928M-1212	3/4"-14	3/4"-14	42.00	40.40	16.70	18.26	27.00
-16	DABPM928M-1616	1"-11	1"-11-1/2	47.00	50.00	22.20	23.83	33.30
-20	DABPM928M-2020	1-1/4"-11	1-1/4"-11-1/2	52.50	60.50	28.60	31.75	41.00
-24	DABPM928M-2424	1-1/2"-11	1-1/2"-11-1/2	60.50	67.00	33.30	38.10	48.00
-32	DABPM928M-3232	2"-11	2"-11-1/2	75.00	75.00	46.00	49.23	65.00/63.00
