* Filter the F1 Thread through selecting the -XX options

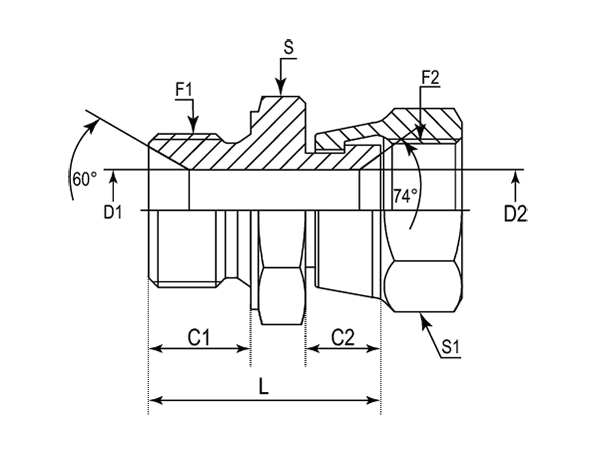

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | UNF | mm | mm | mm | mm | mm | mm | mm |
| -01 | DABPM1251-0204 | 1/8"-28 | 7/16"-20 | 9.00 | 8.50 | 3.50 | 4.37 | 25.00 | 14.00 | 17.00 |
| -01 | DABPM1251-0205 | 1/8"-28 | 1/2"-20 | 9.00 | 8.50 | 3.50 | 5.94 | 25.00 | 14.00 | 17.00 |
| -01 | DABPM1251-0206 | 1/8"-28 | 9/16"-18 | 9.00 | 9.50 | 3.50 | 7.54 | 25.00 | 14.00 | 19.00 |
| -04 | DABPM1251-0404 | 1/4"-19 | 7/16"-20 | 11.00 | 8.50 | 4.37 | 4.37 | 27.50 | 19.00 | 17.00 |
| -04 | DABPM1251-0405 | 1/4"-19 | 1/2"-20 | 11.00 | 8.50 | 4.70 | 5.94 | 28.00 | 19.00 | 17.00 |
| -04 | DABPM1251-0406 | 1/4"-19 | 9/16"-18 | 11.00 | 9.50 | 4.70 | 7.54 | 29.00 | 19.00 | 19.00 |
| -04 | DABPM1251-0408 | 1/4"-19 | 3/4"-16 | 11.00 | 10.50 | 4.70 | 9.93 | 30.00 | 19.00 | 24.00 |
| -06 | DABPM1251-0605 | 3/8"-19 | 1/2"-20 | 12.00 | 8.50 | 7.90 | 5.94 | 31.00 | 22.00 | 17.00 |
| -06 | DABPM1251-0606 | 3/8"-19 | 9/16"-18 | 12.00 | 9.50 | 7.54 | 7.54 | 32.00 | 22.00 | 19.00 |
| -06 | DABPM1251-0608 | 3/8"-19 | 3/4"-16 | 12.00 | 10.50 | 7.90 | 9.90 | 31.50 | 22.00 | 24.00 |
| -06 | DABPM1251-0610 | 3/8"-19 | 7/8"-14 | 12.00 | 11.50 | 7.90 | 12.29 | 34.50 | 22.00 | 27.00 |
| -08 | DABPM1251-0804 | 1/2"-14 | 7/16"-20 | 14.00 | 8.50 | 11.10 | 4.37 | 33.00 | 27.00 | 17.00 |
| -08 | DABPM1251-0806 | 1/2"-14 | 9/16"-18 | 14.00 | 9.50 | 11.10 | 7.54 | 33.00 | 27.00 | 19.00 |
| -08 | DABPM1251-0808 | 1/2"-14 | 3/4"-16 | 14.00 | 10.50 | 11.10 | 9.93 | 36.50 | 27.00 | 24.00 |
| -08 | DABPM1251-0810 | 1/2"-14 | 7/8"-14 | 14.00 | 11.50 | 11.10 | 11.10 | 36.50 | 27.00 | 27.00 |
| -08 | DABPM1251-0812 | 1/2"-14 | 1-1/16"-12 | 14.00 | 13.50 | 11.10 | 15.50 | 36.50 | 27.00 | 32.00 |
| -08 | DABPM1251-0816 | 1/2"-14 | 1-5/16"-12 | 14.00 | 13.50 | 11.10 | 21.44 | 39.00 | 32.00 | 41.00 |
| -10 | DABPM1251-1006 | 5/8"-14 | 9/16"-18 | 16.00 | 9.91 | 14.00 | 7.54 | 36.00 | 30.00 | 19.00 |
| -10 | DABPM1251-1008 | 5/8"-14 | 3/4"-16 | 16.00 | 10.50 | 14.00 | 9.93 | 36.50 | 30.00 | 24.00 |
| -10 | DABPM1251-1010 | 5/8"-14 | 7/8"-14 | 16.00 | 11.50 | 14.00 | 12.30 | 37.50 | 30.00 | 27.00 |
| -10 | DABPM1251-1012 | 5/8"-14 | 1-1/16"-12 | 16.00 | 13.50 | 14.00 | 14.00 | 41.50 | 30.00 | 32.00 |
| -10 | DABPM1251-1016 | 5/8"-14 | 1-5/16"-12 | 16.00 | 14.37 | 14.00 | 21.44 | 41.50 | 34.93 | 41.00 |
| -12 | DABPM1251-1208 | 3/4"-14 | 3/4"-16 | 16.00 | 10.50 | 16.70 | 9.93 | 37.00 | 32.00 | 24.00 |
| -12 | DABPM1251-1210 | 3/4"-14 | 7/8"-14 | 16.00 | 11.50 | 16.70 | 12.30 | 39.00 | 32.00 | 27.00 |
| -12 | DABPM1251-1212 | 3/4"-14 | 1-1/16"-12 | 16.00 | 13.50 | 15.47 | 15.47 | 42.50 | 32.00 | 32.00 |
| -12 | DABPM1251-1214 | 3/4"-14 | 1-3/16"-12 | 16.00 | 13.61 | 16.00 | 16.00 | 40.00 | 32.00 | 36.00 |
| -12 | DABPM1251-1216 | 3/4"-14 | 1-5/16"-12 | 16.00 | 13.50 | 16.70 | 21.44 | 41.00 | 32.00 | 41.00 |
| -12 | DABPM1251-1220 | 3/4"-14 | 1-5/8"-12 | 16.00 | 15.50 | 16.70 | 27.38 | 42.50 | 41.00 | 50.00 |
| -16 | DABPM1251-1612 | 1"-11 | 1-1/16"-12 | 19.00 | 13.50 | 22.20 | 15.47 | 43.50 | 41.00 | 32.00 |
| -16 | DABPM1251-1614 | 1"-11 | 1-3/16"-12 | 19.00 | 13.61 | 22.20 | 18.26 | 43.50 | 41.00 | 36.00 |
| -16 | DABPM1251-1616 | 1"-11 | 1-5/16"-12 | 19.00 | 13.50 | 21.40 | 21.40 | 43.50 | 41.00 | 41.00 |
| -16 | DABPM1251-1620 | 1"-11 | 1-5/8"-12 | 19.00 | 15.50 | 22.20 | 27.38 | 45.50 | 41.00 | 50.00 |
| -20 | DABPM1251-2020 | 1-1/4"-11 | 1-5/8"-12 | 20.00 | 15.75 | 27.42 | 27.42 | 50.00 | 50.00 | 50.00 |
| -20 | DABPM1251-2024 | 1-1/4"-11 | 1-7/8"-12 | 20.00 | 17.53 | 28.60 | 33.32 | 52.50 | 50.00 | 55.00 |
| -24 | DABPM1251-2420 | 1-1/2"-11 | 1-5/8"-12 | 22.00 | 15.75 | 33.30 | 27.42 | 53.00 | 55.00 | 50.00 |
| -24 | DABPM1251-2424 | 1-1/2"-11 | 1-7/8"-12 | 22.00 | 16.00 | 33.30 | 33.30 | 53.00 | 55.00 | 55.00 |
| -24 | DABPM1251-2432 | 1-1/2"-11 | 2-1/2"-12 | 22.00 | 19.80 | 33.30 | 45.24 | 59.00 | 65.00 | 75.00 |
| -32 | DABPM1251-3224 | 2"-11 | 1-7/8"-12 | 25.00 | 16.00 | 46.00 | 33.32 | 59.50 | 70.00 | 55.00 |
| -32 | DABPM1251-3232 | 2"-11 | 2-1/2"-12 | 25.00 | 16.50 | 45.00 | 45.00 | 60.00 | 70.00 | 75.00 |
