DABPM1000 Adaptor – DME&JDE Group

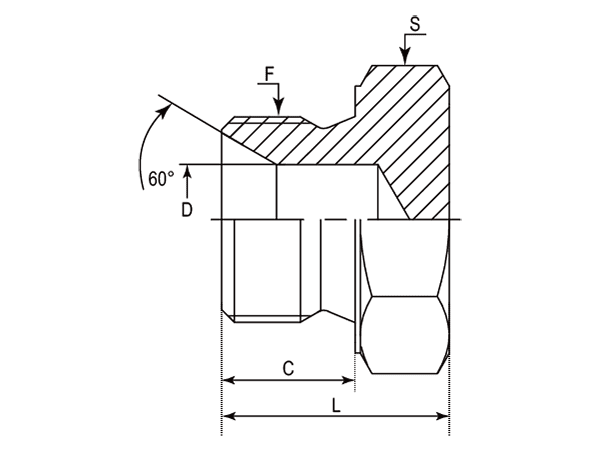

-	Part Number	F (Thread)	C	D	L	S
-01	DABPM1000-0200	1/8"-28	8.00	3.50	16.00	14.00
-04	DABPM1000-0400	1/4"-19	11.00	4.70	18.00	19.00
-06	DABPM1000-0600	3/8"-19	12.00	7.90	20.00	22.00
-08	DABPM1000-0800	1/2"-14	14.00	11.10	24.00	27.00
-10	DABPM1000-1000	5/8"-14	16.00	14.00	26.00	30.00
-12	DABPM1000-1200	3/4"-14	16.00	16.70	27.00	32.00
-16	DABPM1000-1600	1"-11	19.00	22.20	32.00	41.00
-20	DABPM1000-2000	1-1/4"-11	20.00	28.60	34.00	50.00
-24	DABPM1000-2400	1-1/2"-11	22.00	33.30	39.00	55.00
-32	DABPM1000-3200	2"-11	25.00	46.00	45.00	70.00
