* Filter the F1 Thread through selecting the -XX options

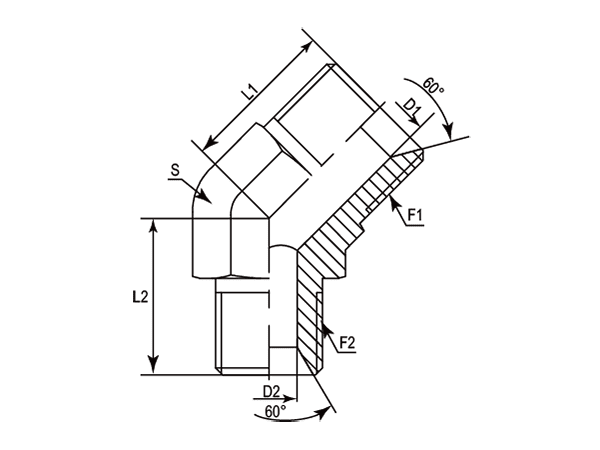

| - | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S |
|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm | mm |
| -01 | DABPM405M-0402 | 1/4"-19 | 1/8"-28 | 4.70 | 3.50 | 21.00 | 20.00 | 14.00 |
| -01 | DABPM405M-0404 | 1/4"-19 | 1/4"-19 | 4.70 | 4.70 | 21.00 | 21.00 | 14.00 |
| -06 | DABPM405M-0604 | 3/8"-19 | 1/4"-19 | 7.90 | 4.70 | 22.00 | 21.00 | 19.00 |
| -08 | DABPM405M-0806 | 1/2"-14 | 3/8"-19 | 11.10 | 7.90 | 28.00 | 26.00 | 22.00 |
| -08 | DABPM405M-0808 | 1/2"-14 | 1/2"-14 | 11.10 | 11.10 | 28.00 | 28.00 | 22.00 |
| -10 | DABPM405M-1010 | 5/8"-14 | 5/8"-14 | 14.00 | 14.00 | 29.00 | 29.00 | 22.00 |
| -12 | DABPM405M-1208 | 3/4"-14 | 1/2"-14 | 16.70 | 11.10 | 32.00 | 30.00 | 27.00 |
| -12 | DABPM405M-1212 | 3/4"-14 | 3/4"-14 | 16.70 | 16.70 | 32.00 | 32.00 | 27.00 |
| -16 | DABPM405M-1612 | 1"-11 | 3/4"-14 | 22.20 | 16.70 | 37.60 | 33.00 | 33.00 |
| -16 | DABPM405M-1616 | 1"-11 | 1"-11 | 22.20 | 22.20 | 37.50 | 37.50 | 33.00 |
| -20 | DABPM405M-2016 | 1-1/4''-11 | 1"-11 | 28.60 | 22.20 | 40.00 | 40.00 | 41.00 |
| -20 | DABPM405M-2020 | 1-1/4''-11 | 1-1/4''-11 | 28.60 | 28.60 | 40.00 | 40.00 | 41.00 |
| -24 | DABPM405M-2424 | 1-1/2''-11 | 1-1/2''-11 | 33.30 | 33.30 | 45.00 | 45.00 | 48.00 |
| -32 | DABPM405M-3232 | 2"-11 | 2"-11 | 46.00 | 46.00 | 52.50 | 52.50 | 63.50 |
