DABT21000-HHP Adaptor – DME&JDE Group

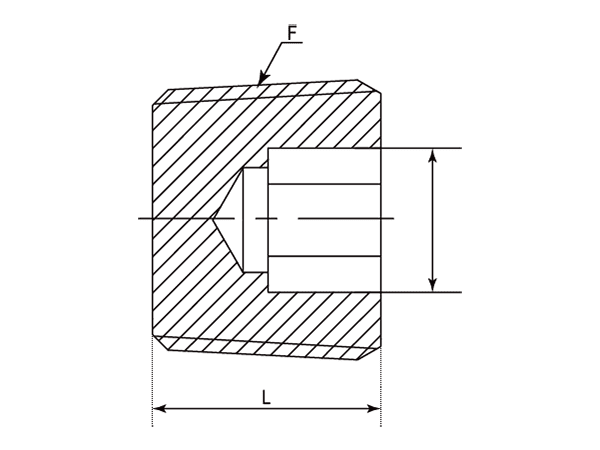

-	Part Number	F (Thread)	L	H
-01	DABT21000-HHP-0200	1/8"-28	8.00	5.00
-06	DABT21000-HHP-0600	3/8"-19	10.00	8.00
-08	DABT21000-HHP-0800	1/2"-14	10.00	10.00
-12	DABT21000-HHP-1200	3/4"-14	12.00	12.00
-16	DABT21000-HHP-1600	1"-11	12.00	17.00
-20	DABT21000-HHP-2000	1 1/4"-11	18.00	22.00
-24	DABT21000-HHP-2400	1 1/2"-11	20.00	24.00
-32	DABT21000-HHP-3200	2"-11	22.00	32.00
