DABPML081 Adaptor – DME&JDE Group

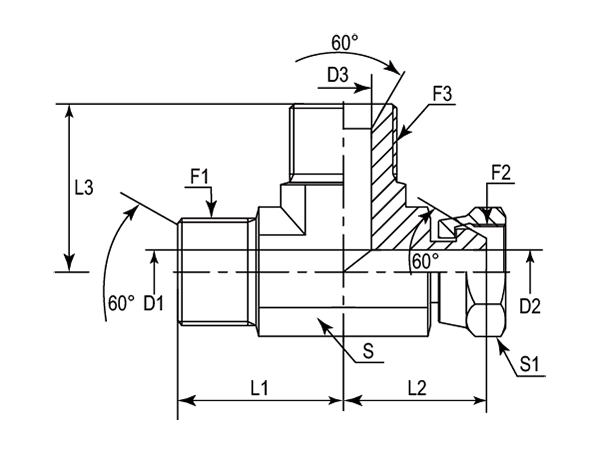

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1
-01	DABPML081-0202	1/8"-28	1/8"-28	1/8"-28	22.50	22.50	22.50	3.50	3.50	3.50	11	14
-04	DABPML081-0404	1/4"-19	1/4"-19	1/4"-19	27.00	23.80	27.00	4.70	4.70	4.70	14	19
-06	DABPML081-0606	3/8"-19	3/8"-19	3/8"-19	29.00	28.20	29.00	7.90	7.90	7.90	19	22
-08	DABPML081-0808	1/2"-14	1/2"-14	1/2"-14	35.00	33.60	35.00	11.10	11.10	11.10	22	27
-10	DABPML081-1010	5/8"-14	5/8"-14	5/8"-14	37.00	35.00	37.00	14.30	12.50	14.30	27	30
-12	DABPML081-1212	3/4"-14	3/4"-14	3/4"-14	43.00	37.90	43.00	16.70	16.70	16.70	27	32
-16	DABPML081-1616	1"-11	1"-11	1"-11	47.00	45.42	47.00	22.20	22.20	22.20	33	41
-20	DABPML081-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	50.00	50.00	50.00	28.60	28.60	28.60	41	50
-24	DABPML081-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	59.00	54.00	59.00	33.30	30.80	33.30	48	55
-32	DABPML081-3232	2"-11	2"-11	2"-11	70.00	60.00	70.00	46.00	43.50	46.00	63	70
