* Filter the F1 Thread through selecting the -XX options

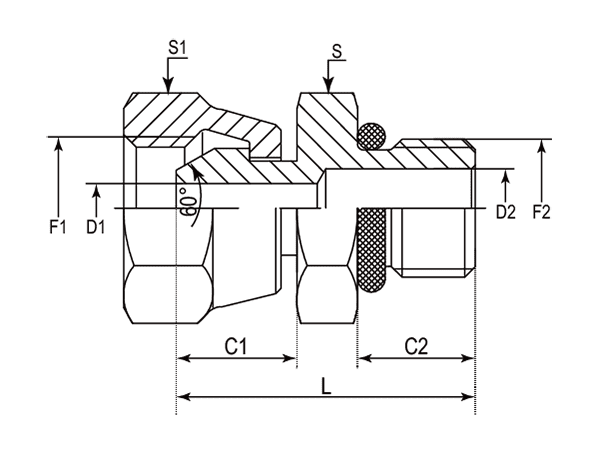

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | Metric | mm | mm | mm | mm | mm | mm | mm |
| -01 | DABP11525-0210 | 1/8"-29 | M10X1 | 9.50 | 8.50 | 3.50 | 4.50 | 23.50 | 14.00 | 14.00 |
| -04 | DABP11525-0412 | 1/4"-19 | M12X1.5 | 11.50 | 11.00 | 4.50 | 6.00 | 28.00 | 17.00 | 19.00 |
| -04 | DABP11525-0414 | 1/4"-19 | M14X1.5 | 11.50 | 11.00 | 4.50 | 7.50 | 28.00 | 19.00 | 19.00 |
| -06 | DABP11525-0616 | 3/8"-19 | M16X1.5 | 12.50 | 11.50 | 7.10 | 9.00 | 31.50 | 22.00 | 22.00 |
| -06 | DABP11525-0618 | 3/8"-19 | M18X1.5 | 12.50 | 12.50 | 7.10 | 11.00 | 32.50 | 24.00 | 22.00 |
| -08 | DABP11525-0818 | 1/2"-14 | M18X1.5 | 15.00 | 12.50 | 9.70 | 11.00 | 34.50 | 24.00 | 27.00 |
| -08 | DABP11525-0822 | 1/2"-14 | M22X1.5 | 15.00 | 13.00 | 9.70 | 14.00 | 37.00 | 27.00 | 27.00 |
| -10 | DABP11525-1022 | 5/8"-14 | M22X1.5 | 15.50 | 13.00 | 12.00 | 14.00 | 37.50 | 27.00 | 30.00 |
| -12 | DABP11525-1222 | 3/4"-14 | M22X1.5 | 17.50 | 13.00 | 15.50 | 14.00 | 38.00 | 27.00 | 32.00 |
| -12 | DABP11525-1227 | 3/4"-14 | M27X2 | 17.50 | 16.00 | 15.50 | 18.00 | 42.00 | 32.00 | 32.00 |
| -16 | DABP11525-1627 | 1"-11 | M27X2 | 19.50 | 16.00 | 20.40 | 18.00 | 43.50 | 32.00 | 41.00 |
| -16 | DABP11525-1633 | 1"-11 | M33X2 | 19.50 | 16.00 | 20.40 | 23.00 | 45.50 | 41.00 | 41.00 |
| -20 | DABP11525-2042 | 1-1/4"-11 | M42X2 | 21.00 | 16.00 | 26.00 | 30.00 | 49.50 | 50.00 | 50.00 |
| -24 | DABP11525-2448 | 1-1/2"-11 | M48X2 | 22.00 | 17.50 | 30.80 | 36.00 | 51.50 | 55.00 | 55.00 |
