DABPM105T-ED Adaptor – DME&JDE Group

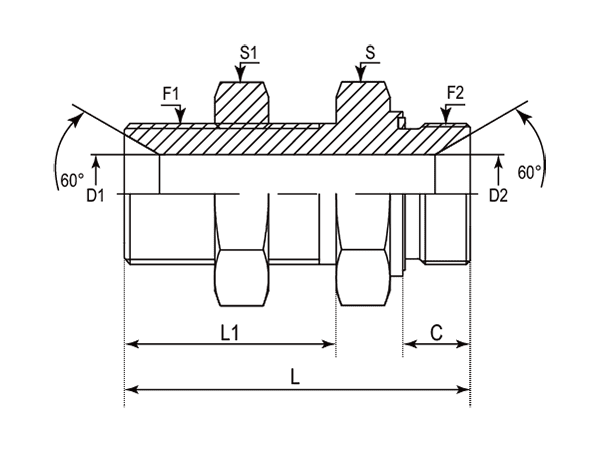

-	Part Number	F1 (Thread)	F2 (Thread)	C	D1	D2	L1	L	S	S1	Cross Number
-01	DABPM105T-0404ED	1/4"-19	1/4"-19	12.00	4.70	4.70	35.00	55.00	19.00	19.00	B-04-04
-06	DABPM105T-0606ED	3/8"-19	3/8"-19	12.00	7.90	7.90	35.00	57.50	22.00	22.00	B-06-06
08	DABPM105T-0808ED	1/2"-14	1/2"-14	14.00	11.10	11.10	39.00	66.00	27.00	27.00	B-08-08
-12	DABPM105T-1212ED	3/4"-14	3/4"-14	16.00	16.70	16.70	42.00	72.00	32.00	32.00	B-12-12
-16	DABPM105T-1616ED	1"-11	1"-11	18.00	22.20	22.20	50.00	84.00	41.00	41.00	B-16-16
-20	DABPM105T-2020ED	1-1/4''-11	1-1/4''-11	20.00	28.60	28.60	52.00	90.00	50.00	50.00	B-20-20
-24	DABPM105T-2424ED	1-1/2''-11	1-1/2''-11	22.00	33.30	33.30	56.00	96.00	55.00	55.00	B-24-24
-32	DABPM105T-3232ED	2"-11	2"-11	22.00	46.00	46.00	59.00	100.00	70.00	70.00	B-32-32
