DABPF405F 45° Elbow Connector BSPP Fixed Female - BSPP Fixed Female

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • FConnection TypeFemale
  • 4Adaptor Structure45° Elbow
  • 05Thread TypesBSPP
  • FConnection TypeFemale
  • DME&JDE Code: DABPF405F
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 45° Elbow
  • Connection Type: Fixed Female × Fixed Female
  • Thread Types: BSPP × BSPP
Technical Data of DABPF405F
  • -04
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

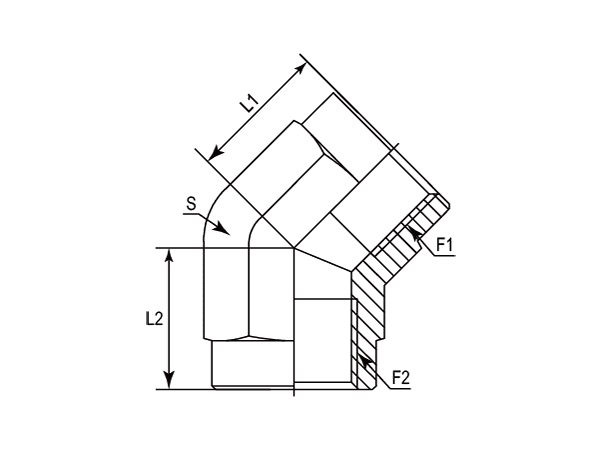

A drawing of DABPF405F hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 S
- - BSPP BSPP mm mm mm
-01 DABPF405F-0202 1/8"-28 1/8"-28 13.00 13.00 14.00
-06 DABPF405F-0404 1/4"-19 1/4"-19 18.00 18.00 19.00
-06 DABPF405F-0606 3/8"-19 3/8"-19 19.00 19.00 22.00
-08 DABPF405F-0808 1/2"-14 1/2"-14 23.90 23.90 27.00
-12 DABPF405F-1212 3/4"-14 3/4"-14 25.50 25.50 33.00
-16 DABPF405F-1616 1"-11 1"-11 31.00 31.00 41.00
