DABPML06Q Adaptor – DME&JDE Group

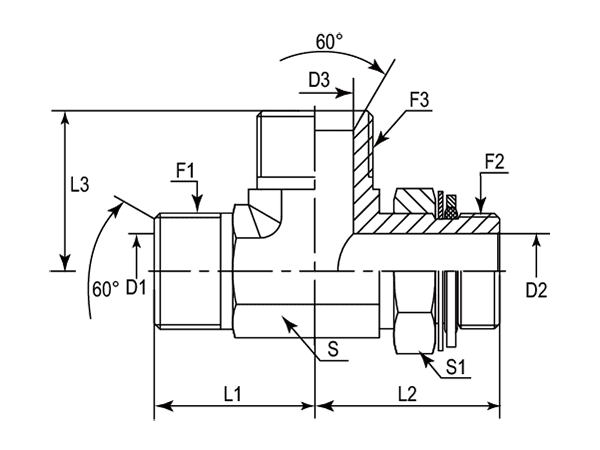

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1
-01	DABPML06Q-0404	1/4"-19	1/4"-19	1/4"-19	27.00	31.50	27.00	4.70	7.50	4.70	14	19
-06	DABPML06Q-0604	3/8"-19	1/4"-19	3/8"-19	29.00	34.00	29.00	7.90	7.50	7.90	19	19
-06	DABPML06Q-0606	3/8"-19	3/8"-19	3/8"-19	29.00	37.00	29.00	7.90	9.90	7.90	19	22
-08	DABPML06Q-0806	1/2"-14	3/8"-19	1/2"-14	34.00	40.00	34.00	11.10	9.90	11.10	22	22
-08	DABPML06Q-0808	1/2"-14	1/2"-14	1/2"-14	34.00	43.00	34.00	11.10	12.30	11.10	22	27
-12	DABPML06Q-1208	3/4"-14	1/2"-14	3/4"-14	41.00	45.50	41.00	16.70	12.30	16.70	27	27
-12	DABPML06Q-1212	3/4"-14	3/4"-14	3/4"-14	41.00	50.00	41.00	16.70	15.50	16.70	27	36
-16	DABPML06Q-1612	1"-11	3/4"-14	1"-11	46.00	52.00	46.00	22.20	15.50	22.20	33	36
-16	DABPML06Q-1616	1"-11	1"-11	1"-11	46.00	53.00	46.00	22.20	21.50	22.20	33	41
-20	DABPML06Q-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	51.00	58.00	51.00	28.60	27.50	28.60	41	50
-24	DABPML06Q-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	60.00	61.00	60.00	33.30	33.00	33.30	48	55
-32	DABPML06Q-3232	2"-11	2"-11	2"-11	75.00	75.00	75.00	46.00	45.00	46.00	63.50	70
