DABPMT05M-SQ Adaptor – DME&JDE Group

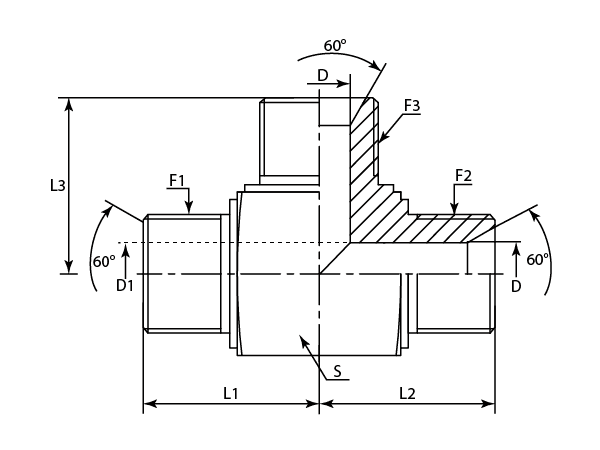

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3
-01	DABPMT05M-0202SQ	1/8"-28	1/8"-28	1/8"-28	18.00	18.00	18.00	3.50	3.50	3.50
-04	DABPMT05M-0404SQ	1/4"-19	1/4"-19	1/4"-19	22.50	22.50	22.50	4.70	4.70	4.70
-06	DABPMT05M-0606SQ	3/8"-19	3/8"-19	3/8"-19	25.00	25.00	25.00	7.90	7.90	7.90
-08	DABPMT05M-0808SQ	1/2"-14	1/2"-14	1/2"-14	31.80	31.80	31.80	11.10	11.10	11.10
-12	DABPMT05M-1212SQ	3/4"-14	3/4"-14	3/4"-14	34.00	34.00	34.00	16.70	16.70	16.70
-16	DABPMT05M-1616SQ	1"-11	1"-11	1"-11	44.00	44.00	44.00	22.20	22.20	22.20
