* Filter the F1 Thread through selecting the -XX options

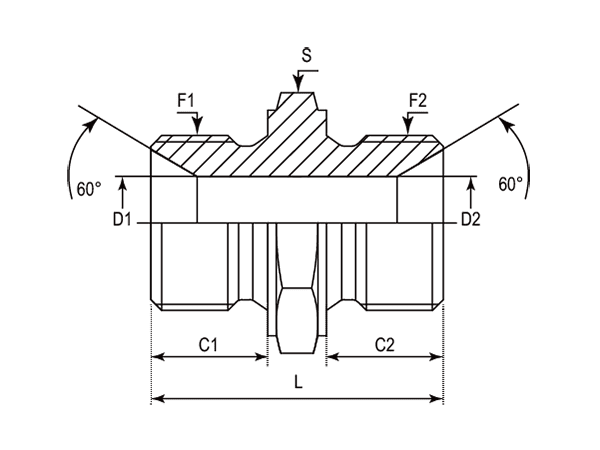

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DABPM105M-0202 | 1/8"-28 | 1/8"-28 | 9.00 | 9.00 | 3.50 | 3.50 | 26.50 | 14.00 |
| -04 | DABPM105M-0402 | 1/4"-19 | 1/8"-28 | 11.00 | 9.00 | 4.70 | 3.50 | 28.00 | 19.00 |
| -04 | DABPM105M-0404 | 1/4"-19 | 1/4"-19 | 11.00 | 11.00 | 4.70 | 4.70 | 30.00 | 19.00 |
| -06 | DABPM105M-0602 | 3/8"-19 | 1/8"-28 | 12.00 | 9.00 | 7.90 | 3.50 | 32.00 | 22.00 |
| -06 | DABPM105M-0604 | 3/8"-19 | 1/4"-19 | 12.00 | 11.00 | 7.90 | 4.70 | 34.00 | 22.00 |
| -06 | DABPM105M-0606 | 3/8"-19 | 3/8"-19 | 12.00 | 12.00 | 7.90 | 7.90 | 35.00 | 22.00 |
| -08 | DABPM105M-0802 | 1/2"-14 | 1/8"-28 | 14.00 | 9.00 | 11.10 | 3.50 | 37.00 | 27.00 |
| -08 | DABPM105M-0804 | 1/2"-14 | 1/4"-19 | 14.00 | 11.00 | 11.10 | 4.70 | 37.00 | 27.00 |
| -08 | DABPM105M-0806 | 1/2"-14 | 3/8"-19 | 14.00 | 12.00 | 11.10 | 7.90 | 40.00 | 27.00 |
| -08 | DABPM105M-0808 | 1/2"-14 | 1/2"-14 | 14.00 | 14.00 | 11.10 | 11.10 | 40.00 | 27.00 |
| -10 | DABPM105M-1004 | 5/8"-14 | 1/4"-19 | 16.00 | 11.00 | 14.00 | 4.70 | 39.00 | 30.00 |
| -10 | DABPM105M-1006 | 5/8"-14 | 3/8"-19 | 16.00 | 12.00 | 14.00 | 7.90 | 40.00 | 30.00 |
| -10 | DABPM105M-1008 | 5/8"-14 | 1/2"-14 | 16.00 | 14.00 | 14.00 | 11.10 | 42.00 | 30.00 |
| -10 | DABPM105M-1010 | 5/8"-14 | 5/8"-14 | 16.00 | 16.00 | 14.00 | 14.00 | 43.00 | 30.00 |
| -12 | DABPM105M-1204 | 3/4"-14 | 1/4"-19 | 16.00 | 11.00 | 16.70 | 4.70 | 41.00 | 32.00 |
| -12 | DABPM105M-1206 | 3/4"-14 | 3/8"-19 | 16.00 | 12.00 | 16.70 | 7.90 | 41.00 | 32.00 |
| -12 | DABPM105M-1208 | 3/4"-14 | 1/2"-14 | 16.00 | 14.00 | 16.70 | 11.10 | 45.00 | 32.00 |
| -12 | DABPM105M-1210 | 3/4"-14 | 5/8"-14 | 16.00 | 16.00 | 16.70 | 14.00 | 43.00 | 32.00 |
| -12 | DABPM105M-1212 | 3/4"-14 | 3/4"-14 | 16.00 | 16.00 | 16.70 | 16.70 | 45.00 | 32.00 |
| -16 | DABPM105M-1606 | 1"-11 | 3/8"-19 | 19.00 | 12.00 | 22.20 | 7.90 | 46.00 | 41.00 |
| -16 | DABPM105M-1608 | 1"-11 | 1/2"-14 | 19.00 | 14.00 | 22.20 | 11.10 | 48.00 | 41.00 |
| -16 | DABPM105M-1610 | 1"-11 | 5/8"-14 | 19.00 | 16.00 | 22.20 | 14.00 | 50.00 | 41.00 |
| -16 | DABPM105M-1612 | 1"-11 | 3/4"-14 | 19.00 | 16.00 | 22.20 | 16.70 | 50.00 | 41.00 |
| -16 | DABPM105M-1616 | 1"-11 | 1"-11 | 19.00 | 19.00 | 22.20 | 22.20 | 53.00 | 41.00 |
| -20 | DABPM105M-2008 | 1-1/4"-11 | 1/2"-14 | 20.00 | 14.00 | 28.60 | 11.10 | 53.00 | 50.00 |
| -20 | DABPM105M-2012 | 1-1/4"-11 | 3/4"-14 | 20.00 | 16.00 | 28.60 | 16.70 | 53.00 | 50.00 |
| -20 | DABPM105M-2016 | 1-1/4"-11 | 1"-11 | 20.00 | 19.00 | 28.60 | 22.20 | 57.00 | 50.00 |
| -20 | DABPM105M-2020 | 1-1/4"-11 | 1-1/4"-11 | 20.00 | 20.00 | 28.60 | 28.60 | 57.00 | 50.00 |
| -24 | DABPM105M-2412 | 1-1/2"-11 | 3/4"-14 | 22.00 | 16.00 | 33.30 | 16.70 | 55.00 | 55.00 |
| -24 | DABPM105M-2416 | 1-1/2"-11 | 1"-11 | 22.00 | 19.00 | 33.30 | 22.20 | 56.00 | 55.00 |
| -24 | DABPM105M-2420 | 1-1/2"-11 | 1-1/4"-11 | 22.00 | 20.00 | 33.30 | 28.60 | 60.00 | 55.00 |
| -24 | DABPM105M-2424 | 1-1/2"-11 | 1-1/2"-11 | 22.00 | 22.00 | 33.30 | 33.30 | 61.00 | 55.00 |
| -32 | DABPM105M-3216 | 2"-11 | 1"-11 | 25.00 | 19.00 | 46.00 | 22.20 | 60.00 | 65.00/70.00 |
| -32 | DABPM105M-3220 | 2"-11 | 1-1/4"-11 | 25.00 | 20.00 | 46.00 | 28.60 | 65.00 | 70.00 |
| -32 | DABPM105M-3224 | 2"-11 | 1-1/2"-11 | 25.00 | 22.00 | 46.00 | 33.30 | 67.00 | 70.00 |
| -32 | DABPM105M-3232 | 2"-11 | 2"-11 | 25.00 | 25.00 | 46.00 | 46.00 | 70.00 | 70.00 |
