DABPM9081-SQ Adaptor – DME&JDE Group

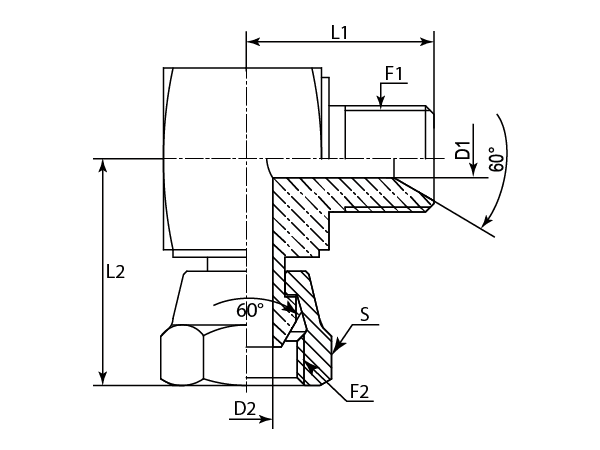

-	PART NUMBER	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2
-01	DABPM9081-0202SQ	1/8"-28	1/8"-28	18.00	17.50	3.50	3.50
-04	DABPM9081-0404SQ	1/4"-19	1/4"-19	23.50	22.50	4.70	4.70
-06	DABPM9081-0606SQ	3/8"-19	3/8"-19	26.50	26.00	7.90	7.50
-08	DABPM9081-0808SQ	1/2"-14	1/2"-14	29.00	30.50	11.10	11.10
-12	DABPM9081-1212SQ	3/4"-14	3/4"-14	34.00	35.00	16.70	16.70
-16	DABPM9081-1616SQ	1"-11	1"-11	42.00	42.00	22.20	22.20
-20	DABPM9081-2020SQ	1-1/4"-11	1-1/4"-11	-	-	28.60	26.00
-24	DABPM9081-2424SQ	1-1/2"-11	1-1/2"-11	50.50	54.50	33.30	33.30
