DABP11251 Adaptor – DME&JDE Group

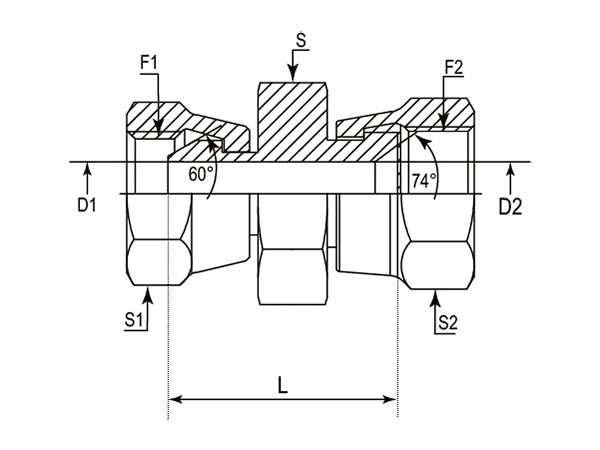

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L	S	S1	S2
-01	DABP11251-0404	1/4"-19	7/16"-20	4.37	4.37	26.00	14.00	19.00	17.00
-01	DABP11251-0405	1/4"-19	1/2"-20	4.70	4.70	26.50	14.00	19.00	15.88
-01	DABP11251-0406	1/4"-19	9/16"-18	4.70	7.54	27.00	14.00	19.00	19.00
-06	DABP11251-0604	3/8"-19	7/16"-20	7.10	4.37	28.50	17.00	22.00	17.00
-06	DABP11251-0605	3/8"-19	1/2"-20	7.10	5.94	29.00	17.00	22.00	15.88
-06	DABP11251-0606	3/8"-19	9/16"-18	7.54	7.54	28.50	19.00	22.00	19.00
-06	DABP11251-0608	3/8"-19	3/4"-16	7.10	9.93	33.50	20.64	22.00	22.23
-08	DABP11251-0806	1/2"-14	9/16"-18	11.10	7.54	32.00	22.00	27.00	19.00
-08	DABP11251-0808	1/2"-14	3/4"-16	9.93	9.93	34.00	22.00	27.00	22.00
-08	DABP11251-0812	1/2"-14	1-1/16''-12	11.10	15.47	38.00	27.00	27.00	32.00
-10	DABP11251-1010	5/8"-14	7/8"-14	12.29	12.29	35.50	24.00	30.00	27.00
-10	DABP11251-1012	5/8"-14	1-1/16''-12	14.30	15.47	37.50	27.00	30.00	32.00
-12	DABP11251-1208	3/4"-14	3/4"-16	16.70	9.93	37.50	27.00	32.00	22.23
-12	DABP11251-1210	3/4"-14	7/8"-14	16.70	12.29	38.00	27.00	32.00	27.00
-12	DABP11251-1212	3/4"-14	1-1/16''-12	15.47	15.47	40.00	27.00	32.00	32.00
-12	DABP11251-1216	3/4"-14	1-5/16''-12	16.70	21.44	41.00	32.00	32.00	41.00
-16	DABP11251-1612	1"-11	1-1/16''-12	22.20	15.47	45.00	36.00	41.00	32.00
-16	DABP11251-1616	1"-11	1-5/16''-12	21.44	21.44	43.00	32.00	41.00	41.00
-20	DABP11251-2020	1-1/4''-11	1-5/8''-12	26.00	26.00	49.50	41.00	50.00	50.00
