DAUNFT30F Branch Tee Connector SAE Female O Ring – SAE Female O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • UNThread TypesSAE UNF
  • FConnection TypeFemale
  • TAdaptor StructureBranch Tee
  • 30Thread TypesSAE UNF
  • FConnection TypeFemale
  • DME&JDE Code: DAUNFT30F
  • Product Type: hydraulic adaptor
  • Standard: JIC and SAE-ORB
  • Structure: Branch Tee
  • Connection Type: Female × Female × Female
  • Thread Types: UNF × UNF × UNF
  • Sealing Method: O Rings
Technical Data of DAUNFT30F
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

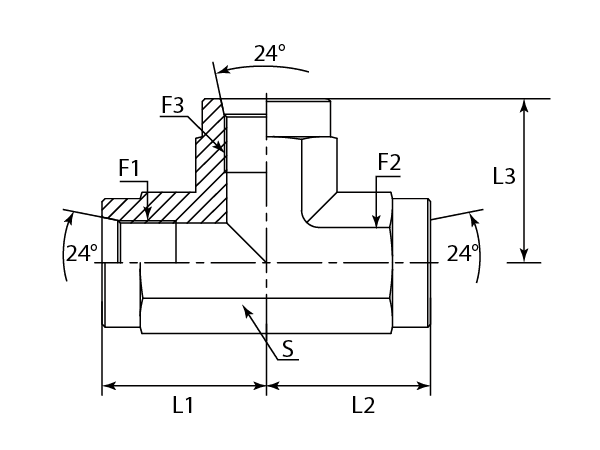

A drawing of DAUNFT30F hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 S Hex
- - UNF UNF UNF mm mm mm - -
-01 DAUNFT30F-0404 7/16"-20 7/16"-20 7/16"-20 18.80 18.80 18.80 19 mm Metric
-01 DAUNFT30F-0404IN 7/16"-20 7/16"-20 7/16"-20 18.80 18.80 18.80 3/4" Imperial
-06 DAUNFT30F-0606 9/16"-18 9/16"-18 9/16"-18 21.84 21.84 21.84 22 mm Metric
-06 DAUNFT30F-0606IN 9/16"-18 9/16"-18 9/16"-18 21.84 21.84 21.84 7/8" Imperial
-08 DAUNFT30F-0808 3/4"-16 3/4"-16 3/4"-16 26.16 26.16 26.16 27 mm Metric
-08 DAUNFT30F-0808IN 3/4"-16 3/4"-16 3/4"-16 26.16 26.16 26.16 1-1/16" Imperial
-10 DAUNFT30F-1010 7/8"-14 7/8"-14 7/8"-14 29.97 29.97 29.97 27 mm Metric
-10 DAUNFT30F-1010IN 7/8"-14 7/8"-14 7/8"-14 29.97 29.97 29.97 1-1/16" Imperial
-12 DAUNFT30F-1212 1-1/16"-12 1-1/16"-12 1-1/16"-12 35.30 35.30 35.30 35 mm Metric
-12 DAUNFT30F-1212IN 1-1/16"-12 1-1/16"-12 1-1/16"-12 35.30 35.30 35.30 1-5/16" Imperial
-16 DAUNFT30F-1616 1-5/16"-12 1-5/16"-12 1-5/16"-12 38.60 38.60 38.60 42 mm Metric
-16 DAUNFT30F-1616IN 1-5/16"-12 1-5/16"-12 1-5/16"-12 38.60 38.60 38.60 1-5/8" Imperial
-20 DAUNFT30F-2020 1-5/8"-12 1-5/8"-12 1-5/8"-12 41.40 41.40 41.40 50 mm Metric
-20 DAUNFT30F-2020IN 1-5/8"-12 1-5/8"-12 1-5/8"-12 41.40 41.40 41.40 1-7/8" Imperial
