DAJCM905M 90° Elbow Connector JIC Male – BSPP Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC UNF
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 05Thread TypesBSPP
  • MConnection TypeMale
  • DME&JDE Code: DAJCM905M
  • Product Type: hydraulic adaptor
  • Standard: JIC and SAE-ORB
  • Structure: 90° Elbow
  • Connection Type: Male × Male
  • Thread Types: UNF × BSPP 60°
Technical Data of DAJCM905M
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

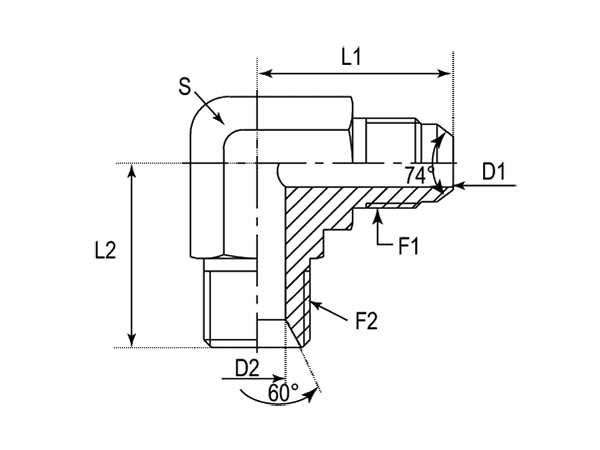

A drawing of DAJCM905M hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D1 D2 L1 L2 S
- - UNF BSPP mm mm mm mm mm
-01 DAJCM905M-0404 7/16"-20 1/4"-19 4.37 4.70 26.70 27.00 14
-01 DAJCM905M-0406 7/16"-20 3/8"-19 4.37 7.90 27.00 29.00 9
-06 DAJCM905M-0604 9/16"-18 1/4"-19 7.54 4.70 26.90 27.00 14
-06 DAJCM905M-0606 9/16"-18 3/8"-19 7.54 7.90 28.96 29.00 19
-06 DAJCM905M-0608 9/16"-18 1/2"-14 7.54 11.10 31.00 34.00 22
-08 DAJCM905M-0806 3/4"-16 3/8"-19 9.93 7.90 31.80 29.00 19
-08 DAJCM905M-0808 3/4"-16 1/2"-14 9.93 11.10 33.80 34.00 22
-08 DAJCM905M-0812 3/4"-16 3/4"-14 9.93 16.70 38.80 41.00 27
-10 DAJCM905M-1008 7/8"-14 1/2"-14 12.29 11.10 36.80 34.00 22
-10 DAJCM905M-1012 7/8"-14 3/4"-14 12.29 16.70 39.10 41.00 27
-12 DAJCM905M-1208 1-1/16''-12 1/2"-14 15.47 11.10 36.50 41.00 27
-12 DAJCM905M-1212 1-1/16''-12 3/4"-14 15.47 16.70 42.20 42.00 27
-12 DAJCM905M-1216 1-1/16''-12 1"-11 15.47 22.20 44.70 48.00 33
-16 DAJCM905M-1612 1-5/16''-12 3/4"-14 21.44 16.70 44.80 48.00 33
-16 DAJCM905M-1616 1-5/16''-12 1"-11 21.44 22.20 46.00 48.00 33
-20 DAJCM905M-2020 1-5/8''-12 1-1/4''-11 27.38 28.60 52.30 51.00 41
