DAJCM928M Adaptor – DME&JDE Group

Technical Data of DAJCM928M

* Filter the F1 Thread through selecting the -XX options

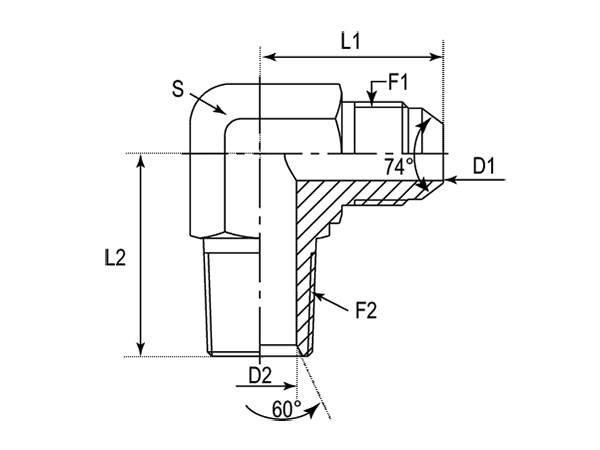

A drawing of DAJCM928M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	Hex
-	-	UNF	NPTF	mm	mm	mm	mm	-	-
-01	DAJCM928M-0202	5/16"-24	1/8"-27	1.57	4.78	19.56	18.29	11 mm	Metric
-01	DAJCM928M-0204	5/16"-24	1/4"-18	1.57	7.14	23.60	27.69	14 mm	Metric
-01	DAJCM928M-0202IN	5/16"-24	1/8"-27	1.57	4.78	19.56	18.29	7/16"	Imperial
-01	DAJCM928M-0204IN	5/16"-24	1/4"-18	1.57	7.14	23.60	27.69	9/16"	Imperial
-03	DAJCM928M-0302	3/8"-24	1/8"-27	3.18	4.78	21.10	18.30	11 mm	Metric
-03	DAJCM928M-0302IN	3/8"-24	1/8"-27	3.18	4.78	21.10	18.30	7/16"	Imperial
-04	DAJCM928M-0401	7/16"-20	1/16"-27	4.37	2.77	22.61	19.81	11 mm	Metric
-04	DAJCM928M-0402	7/16"-20	1/8"-27	4.37	4.78	22.61	19.81	11 mm	Metric
-04	DAJCM928M-0404	7/16"-20	1/4"-18	4.37	7.14	26.67	27.69	14 mm	Metric
-04	DAJCM928M-0406	7/16"-20	3/8"-18	4.37	10.31	28.50	31.00	19 mm	Metric
-04	DAJCM928M-0408	7/16"-20	1/2"-14	4.37	13.49	30.70	37.30	22 mm	Metric
-04	DAJCM928M-0412	7/16"-20	3/4"-14	4.37	18.26	31.80	40.40	27 mm	Metric
-04	DAJCM928M-0401IN	7/16"-20	1/16"-27	4.37	2.77	22.61	19.81	7/16"	Imperial
-04	DAJCM928M-0402IN	7/16"-20	1/8"-27	4.37	4.78	22.61	19.81	7/16"	Imperial
-04	DAJCM928M-0404IN	7/16"-20	1/4"-18	4.37	7.14	26.67	27.69	9/16"	Imperial
-04	DAJCM928M-0406IN	7/16"-20	3/8"-18	4.37	10.31	28.50	31.00	3/4"	Imperial
-04	DAJCM928M-0408IN	7/16"-20	1/2"-14	4.37	13.49	30.70	37.30	7/8"	Imperial
-04	DAJCM928M-0412IN	7/16"-20	3/4"-14	4.37	18.26	31.80	40.40	1-1/16"	Imperial
-05	DAJCM928M-0502	1/2"-20	1/8"-27	5.94	4.78	24.10	19.80	14 mm	Metric
-05	DAJCM928M-0504	1/2"-20	1/4"-18	5.94	7.14	26.70	27.70	14 mm	Metric
-05	DAJCM928M-0506	1/2"-20	3/8"-18	5.94	10.31	28.50	31.00	19 mm	Metric
-05	DAJCM928M-0508	1/2"-20	1/2"-14	5.94	13.49	30.70	37.30	22 mm	Metric
-05	DAJCM928M-0502IN	1/2"-20	1/8"-27	5.94	4.78	24.10	19.80	9/16"	Imperial
-05	DAJCM928M-0504IN	1/2"-20	1/4"-18	5.94	7.14	26.70	27.70	9/16"	Imperial
-05	DAJCM928M-0506IN	1/2"-20	3/8"-18	5.94	10.31	28.50	31.00	3/4"	Imperial
-05	DAJCM928M-0508IN	1/2"-20	1/2"-14	5.94	13.49	30.70	37.30	7/8"	Imperial
-06	DAJCM928M-0602	9/16"-18	1/8"-27	7.54	4.78	26.90	22.90	14 mm	Metric
-06	DAJCM928M-0604	9/16"-18	1/4"-18	7.54	7.14	26.92	27.69	14 mm	Metric
-06	DAJCM928M-0606	9/16"-18	3/8"-18	7.54	10.31	28.96	30.99	19 mm	Metric
-06	DAJCM928M-0608	9/16"-18	1/2"-14	7.54	13.49	30.99	37.34	22 mm	Metric
-06	DAJCM928M-0612	9/16"-18	3/4"-14	7.54	18.26	33.30	40.40	27 mm	Metric
-06	DAJCM928M-0602IN	9/16"-18	1/8"-27	7.54	4.78	26.90	22.90	9/16"	Imperial
-06	DAJCM928M-0604IN	9/16"-18	1/4"-18	7.54	7.14	26.92	27.69	9/16"	Imperial
-06	DAJCM928M-0606IN	9/16"-18	3/8"-18	7.54	10.31	28.96	30.99	3/4"	Imperial
-06	DAJCM928M-0608IN	9/16"-18	1/2"-14	7.54	13.49	30.99	37.34	7/8"	Imperial
-06	DAJCM928M-0612IN	9/16"-18	3/4"-14	7.54	18.26	33.30	40.40	1-1/16"	Imperial
-08	DAJCM928M-0802	3/4"-16	1/8"-27	9.93	4.78	31.80	26.20	19 mm	Metric
-08	DAJCM928M-0804	3/4"-16	1/4"-18	9.93	7.14	31.80	31.00	19 mm	Metric
-08	DAJCM928M-0806	3/4"-16	3/8"-18	9.93	10.31	31.80	31.00	19 mm	Metric
-08	DAJCM928M-0808	3/4"-16	1/2"-14	9.93	13.49	33.78	37.34	22 mm	Metric
-08	DAJCM928M-0812	3/4"-16	3/4"-14	9.93	18.26	36.10	40.40	27 mm	Metric
-08	DAJCM928M-0816	3/4"-16	1"-11-1/2	9.93	23.83	38.60	50.00	33 mm	Metric
-08	DAJCM928M-0802IN	3/4"-16	1/8"-27	9.93	4.78	31.80	26.20	3/4"	Imperial
-08	DAJCM928M-0804IN	3/4"-16	1/4"-18	9.93	7.14	31.80	31.00	3/4"	Imperial
-08	DAJCM928M-0806IN	3/4"-16	3/8"-18	9.93	10.31	31.80	31.00	3/4"	Imperial
-08	DAJCM928M-0808IN	3/4"-16	1/2"-14	9.93	13.49	33.78	37.34	7/8"	Imperial
-08	DAJCM928M-0812IN	3/4"-16	3/4"-14	9.93	18.26	36.10	40.40	1-1/16"	Imperial
-08	DAJCM928M-0816IN	3/4"-16	1"-11-1/2	9.93	23.83	38.60	50.00	1-5/16"	Imperial
-10	DAJCM928M-1006	7/8"-14	3/8"-18	12.29	10.31	36.80	32.50	22 mm	Metric
-10	DAJCM928M-1008	7/8"-14	1/2"-14	12.29	13.49	36.80	37.30	22 mm	Metric
-10	DAJCM928M-1012	7/8"-14	3/4"-14	12.29	18.26	39.10	40.40	27 mm	Metric
-10	DAJCM928M-1016	7/8"-14	1"-11-1/2	12.29	23.83	41.70	50.00	33 mm	Metric
-10	DAJCM928M-1006IN	7/8"-14	3/8"-18	12.29	10.31	36.80	32.50	7/8"	Imperial
-10	DAJCM928M-1008IN	7/8"-14	1/2"-14	12.29	13.49	36.80	37.30	7/8"	Imperial
-10	DAJCM928M-1012IN	7/8"-14	3/4"-14	12.29	18.26	39.10	40.40	1-1/16"	Imperial
-10	DAJCM928M-1016IN	7/8"-14	1"-11-1/2	12.29	23.83	41.70	50.00	1-5/16"	Imperial
-12	DAJCM928M-1206	1-1/16"-12	3/8"-18	15.47	10.31	42.20	35.60	27 mm	Metric
-12	DAJCM928M-1208	1-1/16"-12	1/2"-14	15.47	13.49	42.20	40.40	27 mm	Metric
-12	DAJCM928M-1212	1-1/16"-12	3/4"-14	15.47	18.26	42.16	40.39	27 mm	Metric
-12	DAJCM928M-1216	1-1/16"-12	1"-11-1/2	15.47	23.83	44.70	50.00	33 mm	Metric
-12	DAJCM928M-1220	1-1/16"-12	1-1/4"-11-1/2	15.47	31.75	50.00	60.50	41 mm	Metric
-12	DAJCM928M-1224	1-1/16"-12	1-1/2"-11-1/2	15.47	38.10	53.60	67.10	48 mm	Metric
-12	DAJCM928M-1206IN	1-1/16"-12	3/8"-18	15.47	10.31	42.20	35.60	1-1/16"	Imperial
-12	DAJCM928M-1208IN	1-1/16"-12	1/2"-14	15.47	13.49	42.20	40.40	1-1/16"	Imperial
-12	DAJCM928M-1212IN	1-1/16"-12	3/4"-14	15.47	18.26	42.16	40.39	1-1/16"	Imperial
-12	DAJCM928M-1216IN	1-1/16"-12	1"-11-1/2	15.47	23.83	44.70	50.00	1-5/16"	Imperial
-12	DAJCM928M-1220IN	1-1/16"-12	1-1/4"-11-1/2	15.47	31.75	50.00	60.50	1-5/8"	Imperial
-12	DAJCM928M-1224IN	1-1/16"-12	1-1/2"-11-1/2	15.47	38.10	53.60	67.10	1-7/8"	Imperial
-14	DAJCM928M-1408	1-3/16"-12	1/2"-14	18.26	13.49	45.72	42.93	33 mm	Metric
-14	DAJCM928M-1412	1-3/16"-12	3/4"-14	18.26	18.26	45.70	42.90	33 mm	Metric
-14	DAJCM928M-1416	1-3/16"-12	1"-11-1/2	18.26	23.83	45.72	50.04	33 mm	Metric
-14	DAJCM928M-1408IN	1-3/16"-12	1/2"-14	18.26	13.49	45.72	42.93	1-5/16"	Imperial
-14	DAJCM928M-1412IN	1-3/16"-12	3/4"-14	18.26	18.26	45.70	42.90	1-5/16"	Imperial
-14	DAJCM928M-1416IN	1-3/16"-12	1"-11-1/2	18.26	23.83	45.72	50.04	1-5/16"	Imperial
-16	DAJCM928M-1606	1-5/16"-12	3/8"-18	21.44	10.31	46.00	43.50	33 mm	Metric
-16	DAJCM928M-1608	1-5/16"-12	1/2"-14	21.44	13.49	46.00	45.20	33 mm	Metric
-16	DAJCM928M-1612	1-5/16"-12	3/4"-14	21.44	18.26	45.97	45.20	33 mm	Metric
-16	DAJCM928M-1616	1-5/16"-12	1"-11-1/2	21.44	23.83	45.97	50.04	33 mm	Metric
-16	DAJCM928M-1620	1-5/16"-12	1-1/4"-11-1/2	21.44	31.75	51.10	60.50	41 mm	Metric
-16	DAJCM928M-1624	1-5/16"-12	1-1/2"-11-1/2	21.44	38.10	54.90	67.10	48 mm	Metric
-16	DAJCM928M-1606IN	1-5/16"-12	3/8"-18	21.44	10.31	46.00	43.50	1-5/16"	Imperial
-16	DAJCM928M-1608IN	1-5/16"-12	1/2"-14	21.44	13.49	46.00	45.20	1-5/16"	Imperial
-16	DAJCM928M-1612IN	1-5/16"-12	3/4"-14	21.44	18.26	45.97	45.20	1-5/16"	Imperial
-16	DAJCM928M-1616IN	1-5/16"-12	1"-11-1/2	21.44	23.83	45.97	50.04	1-5/16"	Imperial
-16	DAJCM928M-1620IN	1-5/16"-12	1-1/4"-11-1/2	21.44	31.75	51.10	60.50	1-5/8"	Imperial
-16	DAJCM928M-1624IN	1-5/16"-12	1-1/2"-11-1/2	21.44	38.10	54.90	67.10	1-7/8"	Imperial
-20	DAJCM928M-2012	1- 5/8"-12	3/4"-14	27.38	18.26	52.32	54.86	41 mm	Metric
-20	DAJCM928M-2016	1- 5/8"-12	1"-11-1/2	27.83	23.83	52.30	59.70	41 mm	Metric
-20	DAJCM928M-2020	1- 5/8"-12	1-1/4"-11-1/2	27.38	31.75	52.32	60.45	41 mm	Metric
-20	DAJCM928M-2024	1- 5/8"-12	1-1/2"-11-1/2	27.38	38.10	55.90	67.10	48 mm	Metric
-20	DAJCM928M-2012IN	1- 5/8"-12	3/4"-14	27.38	18.26	52.32	54.86	1-5/8"	Imperial
-20	DAJCM928M-2016IN	1- 5/8"-12	1"-11-1/2	27.83	23.83	52.30	59.70	1-5/8"	Imperial
-20	DAJCM928M-2020IN	1- 5/8"-12	1-1/4"-11-1/2	27.38	31.75	52.32	60.45	1-5/8"	Imperial
-20	DAJCM928M-2024IN	1- 5/8"-12	1-1/2"-11-1/2	27.38	38.10	55.90	67.10	1-7/8"	Imperial
-24	DAJCM928M-2416	1- 7/8"-12	1"-11-1/2	33.32	23.83	59.20	65.50	48 mm	Metric
-24	DAJCM928M-2420	1- 7/8"-12	1-1/4"-11-1/2	33.32	31.75	59.20	66.30	48 mm	Metric
-24	DAJCM928M-2424	1- 7/8"-12	1-1/2"-11-1/2	33.32	38.10	59.20	67.10	48 mm	Metric
-24	DAJCM928M-2432	1- 7/8"-12	2"-11-1/2	33.32	49.23	71.37	76.20	65 mm	Metric
-24	DAJCM928M-2416IN	1- 7/8"-12	1"-11-1/2	33.32	23.83	59.20	65.50	1-7/8"	Imperial
-24	DAJCM928M-2420IN	1- 7/8"-12	1-1/4"-11-1/2	33.32	31.75	59.20	66.30	1-7/8"	Imperial
-24	DAJCM928M-2424IN	1- 7/8"-12	1-1/2"-11-1/2	33.32	38.10	59.20	67.10	1-7/8"	Imperial
-24	DAJCM928M-2432IN	1- 7/8"-12	2"-11-1/2	33.32	49.23	71.37	76.20	2-1/2"	Imperial
-32	DAJCM928M-3224	2- 1/2"-12	1-1/2"-11-1/2	45.24	38.10	77.70	75.40	65 mm	Metric
-32	DAJCM928M-3232	2- 1/2"-12	2"-11-1/2	45.24	49.23	77.70	76.10	65 mm	Metric
-32	DAJCM928M-3224IN	2- 1/2"-12	1-1/2"-11-1/2	45.24	38.10	77.70	75.40	2-1/2"	Imperial
-32	DAJCM928M-3232IN	2- 1/2"-12	2"-11-1/2	45.24	49.23	77.70	76.10	2-1/2"	Imperial
