DAJCM928P 90° Long Elbow Connector JIC Male – NPTF Male

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC UNF
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 28Thread TypesNPTF
  • PElbow TypeLong Elbow
  • DME&JDE Code: DAJCM928P
  • Product Type: hydraulic adaptor
  • Standard: JIC and SAE-ORB
  • Structure: 90° Elbow
  • Connection Type: Male × Male
  • Thread types: UNF × NPTF
Technical Data of DAJCM928P
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -14
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

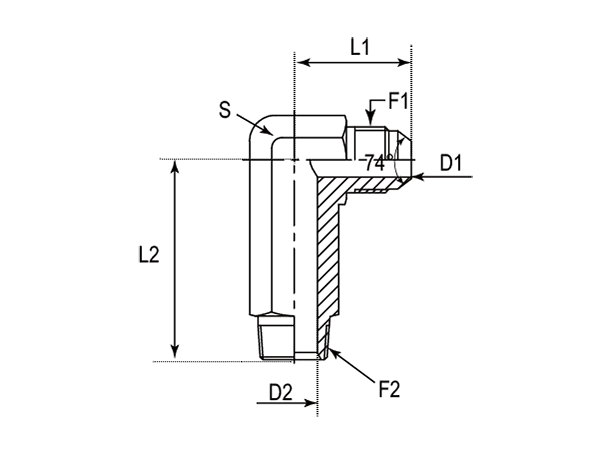

A drawing of DAJCM928P hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D1 D2 L1 L2 S Hex
- - UNF NPTF mm mm mm mm - -
-01 DAJCM928P-0402 7/16"-20 1/8"-27 4.37 4.78 22.60 29.70 11 mm Metric
-01 DAJCM928P-0404 7/16"-20 1/4"-18 4.37 7.14 26.70 36.60 14 mm Metric
-01 DAJCM928P-0402IN 7/16"-20 1/8"-27 4.37 4.78 22.60 29.70 7/16" Imperial
-01 DAJCM928P-0404IN 7/16"-20 1/4"-18 4.37 7.14 26.70 36.60 9/16" Imperial
-05 DAJCM928P-0502 1/2"-20 1/8"-27 5.94 4.78 26.90 29.70 14 mm Metric
-05 DAJCM928P-0504 1/2"-20 1/4"-18 5.94 7.14 26.70 37.60 14 mm Metric
-05 DAJCM928P-0502IN 1/2"-20 1/8"-27 5.94 4.78 26.90 29.70 9/16" Imperial
-05 DAJCM928P-0504IN 1/2"-20 1/4"-18 5.94 7.14 26.70 37.60 9/16" Imperial
-06 DAJCM928P-0602 9/16"-18 1/8"-27 7.54 4.78 26.90 31.20 14 mm Metric
-06 DAJCM928P-0604 9/16"-18 1/4"-18 7.54 7.14 26.90 39.60 14 mm Metric
-06 DAJCM928P-0606 9/16"-18 3/8"-18 7.54 10.31 29.00 46.20 19 mm Metric
-06 DAJCM928P-0608 9/16"-18 1/2"-14 7.54 13.49 31.00 55.70 22 mm Metric
-06 DAJCM928P-0602IN 9/16"-18 1/8"-27 7.54 4.78 26.90 31.20 9/16" Imperial
-06 DAJCM928P-0604IN 9/16"-18 1/4"-18 7.54 7.14 26.90 39.60 9/16" Imperial
-06 DAJCM928P-0606IN 9/16"-18 3/8"-18 7.54 10.31 29.00 46.20 3/4" Imperial
-06 DAJCM928P-0608IN 9/16"-18 1/2"-14 7.54 13.49 31.00 55.70 7/8" Imperial
-08 DAJCM928P-0804 3/4"-16 1/4"-18 9.93 7.14 31.80 46.20 19 mm Metric
-08 DAJCM928P-0806 3/4"-16 3/8"-18 9.93 10.31 31.80 45.20 19 mm Metric
-08 DAJCM928P-0808 3/4"-16 1/2"-14 9.93 13.49 33.80 55.12 22 mm Metric
-08 DAJCM928P-0812 3/4"-16 3/4"-14 9.93 18.26 36.10 61.90 27 mm Metric
-08 DAJCM928P-0804IN 3/4"-16 1/4"-18 9.93 7.14 31.80 46.20 3/4" Imperial
-08 DAJCM928P-0806IN 3/4"-16 3/8"-18 9.93 10.31 31.80 45.20 3/4" Imperial
-08 DAJCM928P-0808IN 3/4"-16 1/2"-14 9.93 13.49 33.80 55.12 7/8" Imperial
-08 DAJCM928P-0812IN 3/4"-16 3/4"-14 9.93 18.26 36.10 61.90 1-1/16" Imperial
-10 DAJCM928P-1008 7/8"-14 1/2"-14 12.29 13.49 36.80 54.90 22 mm Metric
-10 DAJCM928P-1012 7/8"-14 3/4"-14 12.29 18.26 39.10 63.00 27 mm Metric
-10 DAJCM928P-1008IN 7/8"-14 1/2"-14 12.29 13.49 36.80 54.90 7/8" Imperial
-10 DAJCM928P-1012IN 7/8"-14 3/4"-14 12.29 18.26 39.10 63.00 1-1/16" Imperial
-12 DAJCM928P-1208 1-1/16"-12 1/2"-14 15.47 13.49 42.20 62.00 27 mm Metric
-12 DAJCM928P-1212 1-1/16"-12 3/4"-14 15.47 18.26 42.20 61.90 27 mm Metric
-12 DAJCM928P-1216 1-1/16"-12 1"-11-1/2 15.47 23.83 44.70 76.50 33 mm Metric
-12 DAJCM928P-1208IN 1-1/16"-12 1/2"-14 15.47 13.49 42.20 62.00 1-1/16" Imperial
-12 DAJCM928P-1212IN 1-1/16"-12 3/4"-14 15.47 18.26 42.20 61.90 1-1/16" Imperial
-12 DAJCM928P-1216IN 1-1/16"-12 1"-11-1/2 15.47 23.83 44.70 76.50 1-5/16" Imperial
-14 DAJCM928P-1412 1-3/16"-12 3/4"-14 18.26 18.26 45.70 65.80 33 mm Metric
-14 DAJCM928P-1412IN 1-3/16"-12 3/4"-14 18.26 18.26 45.70 65.80 1-5/16" Imperial
-16 DAJCM928P-1612 1-5/16"-12 3/4"-14 21.44 18.26 46.00 66.80 33 mm Metric
-16 DAJCM928P-1616 1-5/16"-12 1"-11-1/2 21.44 23.83 46.00 76.60 33 mm Metric
-16 DAJCM928P-1612IN 1-5/16"-12 3/4"-14 21.44 18.26 46.00 66.80 1-5/16" Imperial
-16 DAJCM928P-1616IN 1-5/16"-12 1"-11-1/2 21.44 23.83 46.00 76.60 1-5/16" Imperial
-20 DAJCM928P-2020 1-5/8"-12 1-1/4"-11-1/2 27.38 31.75 52.30 93.70 41 mm Metric
-20 DAJCM928P-2020IN 1-5/8"-12 1-1/4"-11-1/2 27.38 31.75 52.30 93.70 1-5/8" Imperial
-24 DAJCM928P-2424 1-7/8"-12 1-1/2"-11-1/2 33.32 38.10 59.20 104.40 48 mm Metric
-24 DAJCM928P-2424IN 1-7/8"-12 1-1/2"-11-1/2 33.32 38.10 59.20 104.40 1-7/8" Imperial
