DAJCM152JM Straight Connector JIC Male – JIS Metric Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC UNF
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 52JThread TypesJIS Metric
  • MConnection TypeMale
  • DME&JDE Code: DAJCM152JM
  • Product Type: hydraulic adaptor
  • Standard: JIC and SAE-ORB
  • Structure: straight
  • Connection Type: Male × Male
  • Thread Types: UNF × JIS Metric 60°
Technical Data of DAJCM152JM
  • -04
  • -06
  • -10
  • -12
  • -14
  • -16

* Filter the F1 Thread through selecting the -XX options

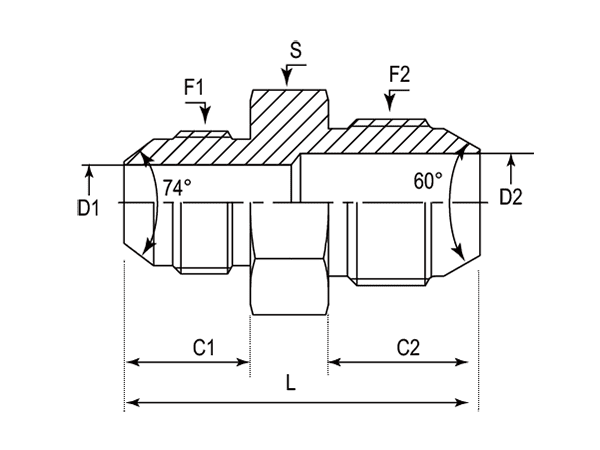

A drawing of DAJCM152JM hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - UNF JIS Metric mm mm mm mm mm mm
-01 DAJCM152JM-0414 7/16"-20 M14X1.5 13.97 17.00 4.37 4.37 37.00 17.00
-06 DAJCM152JM-0616 9/16"-18 M16X1.5 14.12 18.00 7.00 7.00 40.00 17.00
-06 DAJCM152JM-0618 9/16"-18 M18X1.5 14.12 18.00 7.54 7.54 40.50 19.00
-08 DAJCM152JM-0822 3/4"-16 M22X1.5 16.69 20.00 9.93 12.00 47.00 24.00
-10 DAJCM152JM-1024 7/8"-14 M24X1.5 19.25 21.50 12.29 15.00 51.00 27.00
-12 DAJCM152JM-1230 1-1/16''-12 M30X1.5 21.95 26.00 15.47 18.50 59.00 32.00
-16 DAJCM152JM-1633 1-5/16''-12 M33X1.5 23.14 30.00 20.00 20.00 64.00 36.00
