DAUNF130F Straight Connector SAE Female O Ring – SAE Female O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • UNThread TypesSAE UNF
  • FConnection TypeFemale
  • 1Adaptor StructureStraight
  • 30Thread TypesSAE UNF
  • FConnection TypeFemale
  • DME&JDE Code: DAUNF130F
  • Product Type: hydraulic adaptor
  • Standard: JIC and SAE-ORB
  • Structure: Straight
  • Connection Type: Female × Female
  • Thread Types: NPTF × NPTF
  • Other Features: Hexagon
Technical Data of DAUNF130F
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

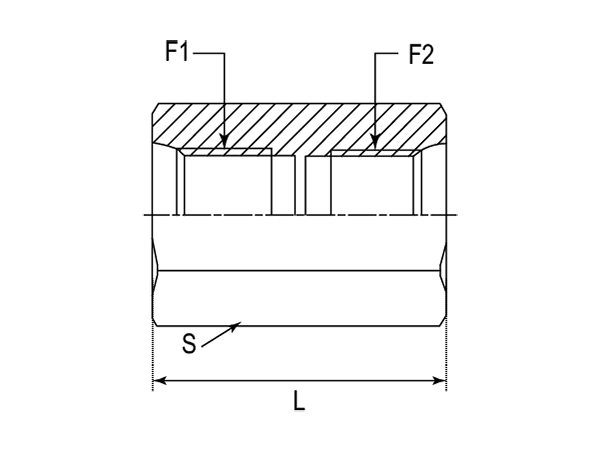

A drawing of DAUNF130F hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L S Hex
- - UNF UNF mm mm -
-01 DAUNF130F-0404 7/16"-20 7/16"-20 29.00 17 mm Metric
-01 DAUNF130F-0404IN 7/16"-20 7/16"-20 29.00 11/16" Imperial
-06 DAUNF130F-0606 9/16"-18 9/16"-18 32.00 22 mm Metric
-06 DAUNF130F-0606IN 9/16"-18 9/16"-18 32.00 13/16" Imperial
-08 DAUNF130F-0808 3/4"-16 3/4"-16 36.10 27 mm Metric
-08 DAUNF130F-0808IN 3/4"-16 3/4"-16 36.10 1-1/8" Imperial
-10 DAUNF130F-1010 7/8"-14 7/8"-14 41.50 32 mm Metric
-10 DAUNF130F-1010IN 7/8"-14 7/8"-14 41.50 1-1/4" Imperial
-12 DAUNF130F-1212 1-1/16"-12 1-1/16"-12 47.00 36 mm Metric
-12 DAUNF130F-1212IN 1-1/16"-12 1-1/16"-12 47.00 1-3/8" Imperial
-16 DAUNF130F-1616 1-5/16"-12 1-5/16"-12 49.50 41 mm Metric
-16 DAUNF130F-1616IN 1-5/16"-12 1-5/16"-12 49.50 1-5/8" Imperial
-20 DAUNF130F-2020 1-5/8"-12 1-5/8"-12 53.34 50 mm Metric
-20 DAUNF130F-2020IN 1-5/8"-12 1-5/8"-12 53.34 2" Imperial
