DAJCT105M Straight Union Bulkhead JIC Male Cone – NPTF Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC UNF
  • TOther FeaturesBulkhead
  • 1Adaptor StructureStraight
  • 05Thread TypesBSPP
  • MConnection TypeMale
  • DME&JDE Code: DAJCT105M
  • Product Type: Hydraulic Adaptors
  • Standard: JIC and SAE-ORB
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: UNF × BSPP 60°
  • Other Features: Bulkhead
Technical Data of DAJCT105M
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

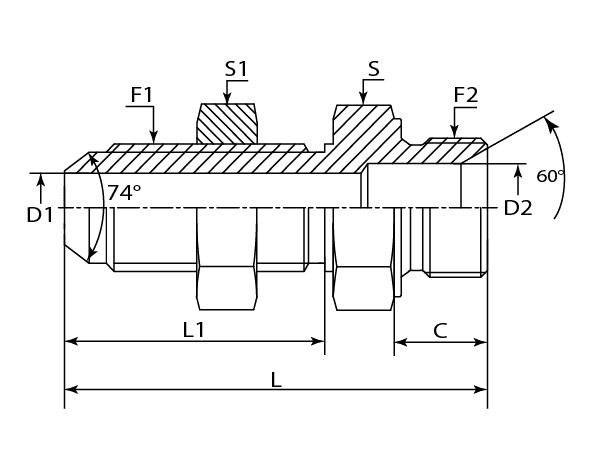

A drawing of DAJCT105M hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C D1 D2 L1 L S S1
- - UNF BSPP mm mm mm mm mm mm mm
-01 DAJCT105M-0404 7/16"-20 1/4"-19 11.00 4.37 4.37 30.50 50.50 19 17.46
-01 DAJCT105M-0406 7/16"-20 3/8"-19 12.00 4.37 7.90 30.50 53.00 22 17.46
-06 DAJCT105M-0606 9/16"-18 3/8"-19 12.00 7.54 7.54 32.51 54.00 22 20.64
-06 DAJCT105M-0608 9/16"-18 1/2"-14 14.00 7.54 11.10 32.51 58.00 27 20.64
-08 DAJCT105M-0808 3/4"-16 1/2"-14 14.00 9.93 9.93 36.58 62.50 27 25.4
-10 DAJCT105M-1008 7/8"-14 1/2"-14 14.00 11.10 11.10 40.13 65.50 28.58 28.5
-12 DAJCT105M-1212 1-1/16"-12 3/4"-14 16.00 15.47 15.47 44.45 71.50 32 34.9
-16 DAJCT105M-1616 1-5/16"-12 1"-11 19.00 21.44 21.44 44.45 76.50 41 41
