DAOF5T28M Adaptor – DME&JDE Group

Technical Data of DAOF5T28M

* Filter the F1 Thread through selecting the -XX options

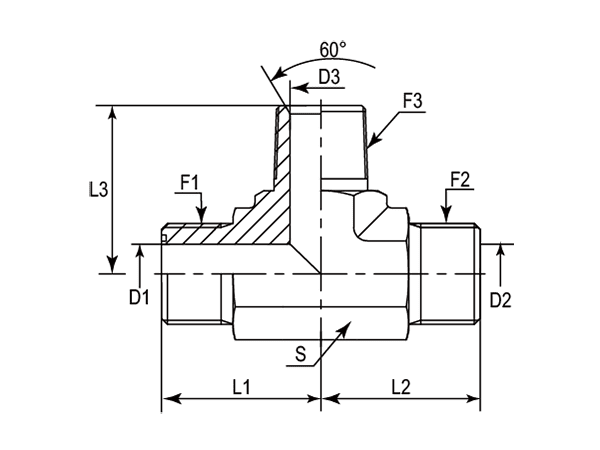

A drawing of DAOF5T28M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	Hex
-	-	UNF	UNF	NPTF	mm	mm	mm	mm	mm	mm	-	-
-01	DAOF5T28M-0402	9/16"-18	9/16"-18	1/8"-27	21.60	21.60	19.80	4.37	4.37	4.78	14 mm	Metric
-01	DAOF5T28M-0404	9/16"-18	9/16"-18	1/4"-18	21.60	21.60	28.45	4.37	4.37	7.14	14 mm	Metric
-01	DAOF5T28M-0402IN	9/16"-18	9/16"-18	1/8"-27	21.60	21.60	19.80	4.37	4.37	4.78	9/16"	Imperial
-01	DAOF5T28M-0404IN	9/16"-18	9/16"-18	1/4"-18	21.60	21.60	28.45	4.37	4.37	7.14	9/16"	Imperial
-06	DAOF5T28M-0604	11/16"-16	11/16"-16	1/4"-18	24.90	24.90	27.70	6.71	6.71	7.14	19 mm	Metric
-06	DAOF5T28M-0606	11/16"-16	11/16"-16	3/8"-18	24.90	24.90	31.00	6.71	6.71	10.31	19 mm	Metric
-06	DAOF5T28M-0604IN	11/16"-16	11/16"-16	1/4"-18	24.90	24.90	27.70	6.71	6.71	7.14	3/4"	Imperial
-06	DAOF5T28M-0606IN	11/16"-16	11/16"-16	3/8"-18	24.90	24.90	31.00	6.71	6.71	10.31	3/4"	Imperial
-08	DAOF5T28M-0806	13/16"-16	13/16"-16	3/8"-18	27.90	27.90	31.00	9.60	9.60	10.31	19 mm	Metric
-08	DAOF5T28M-0808	13/16"-16	13/16"-16	1/2"-14	27.90	27.90	37.30	9.60	9.60	13.49	22 mm	Metric
-08	DAOF5T28M-0806IN	13/16"-16	13/16"-16	3/8"-18	27.90	27.90	31.00	9.60	9.60	10.31	3/4"	Imperial
-08	DAOF5T28M-0808IN	13/16"-16	13/16"-16	1/2"-14	27.90	27.90	37.30	9.60	9.60	13.49	7/8"	Imperial
-10	DAOF5T28M-1008	1"-14	1"-14	1/2"-14	33.30	33.30	37.30	12.29	12.29	13.49	27 mm	Metric
-10	DAOF5T28M-1008IN	1"-14	1"-14	1/2"-14	33.30	33.30	37.30	12.29	12.29	13.49	1-1/16"	Imperial
-12	DAOF5T28M-1208	1-3/16"-12	1-3/16"-12	1/2"-14	37.30	37.30	40.40	15.47	15.47	13.49	30 mm	Metric
-12	DAOF5T28M-1212	1-3/16"-12	1-3/16"-12	3/4"-14	37.30	37.30	40.40	15.47	15.47	18.26	30 mm	Metric
-12	DAOF5T28M-1208IN	1-3/16"-12	1-3/16"-12	1/2"-14	37.30	37.30	40.40	15.47	15.47	13.49	1-3/16"	Imperial
-12	DAOF5T28M-1212IN	1-3/16"-12	1-3/16"-12	3/4"-14	37.30	37.30	40.40	15.47	15.47	18.26	1-3/16"	Imperial
-16	DAOF5T28M-1616	1-7/16"-12	1-7/16"-12	1"-11-1/2	41.70	41.70	50.00	20.60	20.60	23.83	36 mm	Metric
-16	DAOF5T28M-1616IN	1-7/16"-12	1-7/16"-12	1"-11-1/2	41.70	41.70	50.00	20.60	20.60	23.83	1-7/16"	Imperial
-20	DAOF5T28M-2020	1-11/16"-12	1-11/16"-12	1-1/4"-11-1/2	44.70	44.70	60.50	26.00	26.00	31.75	41 mm	Metric
-20	DAOF5T28M-2020IN	1-11/16"-12	1-11/16"-12	1-1/4"-11-1/2	44.70	44.70	60.50	26.00	26.00	31.75	1-5/8"	Imperial
-24	DAOF5T28M-2424	2"-12	2"-12	1-1/2"-11-1/2	48.80	48.80	67.00	32.00	32.00	38.10	48 mm	Metric
-24	DAOF5T28M-2424IN	2"-12	2"-12	1-1/2"-11-1/2	48.80	48.80	67.00	32.00	32.00	38.10	1-7/8"	Imperial
